RADAR5 Hepatitis B Work-Precision Diagrams

RADAR5 Hepatitis B Virus Infection

This is a stiff delay differential equation model of acute hepatitis B virus infection, taken from the RADAR5 test suite by Guglielmi and Hairer. The system has dimension 10 with 5 constant delays ($\tau_1 = 0.6$, $\tau_2 = 0.6$, $\tau_3 = 2.0$, $\tau_4 = 2.0$, $\tau_5 = 3.0$ days).

The model describes the dynamics of the immune response to hepatitis B virus infection, including free virus ($u_1$), infected hepatocytes ($u_2$), antibody-bound virus ($u_3$), CTL effector cells ($u_4$), and various immune cell populations ($u_5$–$u_{10}$). The delays represent the time lags in the immune response cascade.

The problem is extremely stiff due to rate constants spanning over 50 orders of magnitude (from $O(10^{-22})$ to $O(10^{33})$), making it an excellent test case for stiff DDE solvers.

References

Guglielmi, N. and Hairer, E. (2005). Users' Guide for the code RADAR5 - Version 2.1.

using DelayDiffEq, DiffEqDevTools, Plots
using OrdinaryDiffEqRosenbrock, OrdinaryDiffEqSDIRK
gr()

Plots.GRBackend()

Problem Definition

function f_hepatitis!(du, u, h, p, t)
    α = p
    xi(z) = 1.0 - z / α[7]

    # Delayed values for 5 delays
    y4_τ1 = h(p, t - α[41]; idxs = 4)
    y4_τ2 = h(p, t - α[42]; idxs = 4)
    y4_τ3 = h(p, t - α[43]; idxs = 4)
    y4_τ4 = h(p, t - α[44]; idxs = 4)
    y4_τ5 = h(p, t - α[45]; idxs = 4)

    y5_τ1 = h(p, t - α[41]; idxs = 5)
    y5_τ3 = h(p, t - α[43]; idxs = 5)

    y6_τ2 = h(p, t - α[42]; idxs = 6)
    y6_τ4 = h(p, t - α[44]; idxs = 6)
    y6_τ5 = h(p, t - α[45]; idxs = 6)

    y7_τ3 = h(p, t - α[43]; idxs = 7)

    y8_τ4 = h(p, t - α[44]; idxs = 8)
    y8_τ5 = h(p, t - α[45]; idxs = 8)

    du[1] = α[1] * u[2] + α[2] * α[3] * u[2] * u[7] - α[4] * u[1] * u[10] -
        α[5] * u[1] - α[6] * u[1] * (α[7] - u[2] - u[3])
    du[2] = α[8] * u[1] * (α[7] - u[2] - u[3]) - α[3] * u[2] * u[7] - α[9] * u[2]
    du[3] = α[3] * u[2] * u[7] + α[9] * u[2] - α[10] * u[3]
    du[4] = α[11] * α[12] * u[1] - α[13] * u[4]
    du[5] = α[14] * (xi(u[3]) * α[15] * y4_τ1 * y5_τ1 - u[4] * u[5]) -
        α[16] * u[4] * u[5] * u[7] + α[17] * (α[18] - u[5])
    du[6] = α[19] * (xi(u[3]) * α[20] * y4_τ2 * y6_τ2 - u[4] * u[6]) -
        α[21] * u[4] * u[6] * u[8] + α[22] * (α[23] - u[6])
    du[7] = α[24] * (
        xi(u[3]) * α[25] * y4_τ3 * y5_τ3 * y7_τ3 -
            u[4] * u[5] * u[7]
    ) - α[26] * u[2] * u[7] + α[27] * (α[28] - u[7])
    du[8] = α[29] * (
        xi(u[3]) * α[30] * y4_τ4 * y6_τ4 * y8_τ4 -
            u[4] * u[6] * u[8]
    ) + α[31] * (α[32] - u[8])
    du[9] = α[33] * xi(u[3]) * α[34] * y4_τ5 * y6_τ5 * y8_τ5 +
        α[35] * (α[36] - u[9])
    du[10] = α[37] * u[9] - α[38] * u[10] * u[1] - α[39] * u[10]

    return nothing
end

α = zeros(45)
# Kinetic parameters
α[1] = 83.0;      α[2] = 5.0;     α[3] = 6.6e14;  α[4] = 3.0e11;  α[5] = 0.4
α[6] = 2.5e7;     α[7] = 0.5e-12; α[8] = 2.3e9;   α[9] = 0.052;   α[10] = 0.15
α[11] = 9.4e9;    α[12] = 1.0e-15; α[13] = 1.2;    α[14] = 2.7e16; α[15] = 2.0
α[16] = 5.3e27;   α[17] = 1.0;    α[18] = 1.0e-18; α[19] = 2.7e16; α[20] = 2.0
α[21] = 8.0e28;   α[22] = 1.0;    α[23] = 1.0e-19; α[24] = 5.3e33; α[25] = 16.0
α[26] = 1.6e14;   α[27] = 0.4;    α[28] = 1.0e-18; α[29] = 8.0e32; α[30] = 16.0
α[31] = 0.1;      α[32] = 1.0e-18; α[33] = 1.7e30; α[34] = 3.0;    α[35] = 0.4
α[36] = 4.3e-22;  α[37] = 0.85e7; α[38] = 8.6e11;  α[39] = 0.043
# Delays
α[41] = 0.6; α[42] = 0.6; α[43] = 2.0; α[44] = 2.0; α[45] = 3.0

function h_hepatitis(p, t; idxs::Union{Nothing, Int} = nothing)
    α = p
    u0 = [
        2.9e-16, 0.0, 0.0, 0.0, α[18], α[23], α[28], α[32], α[36],
        α[37] * α[36] / α[39],
    ]
    return if idxs === nothing
        u0
    else
        u0[idxs]
    end
end

prob = DDEProblem(
    f_hepatitis!, h_hepatitis, (0.0, 130.0), α;
    constant_lags = [0.6, 2.0, 3.0]
)

DDEProblem with uType Vector{Float64} and tType Float64. In-place: true
Non-trivial mass matrix: false
timespan: (0.0, 130.0)
u0: 10-element Vector{Float64}:
 2.9e-16
 0.0
 0.0
 0.0
 1.0e-18
 1.0e-19
 1.0e-18
 1.0e-18
 4.3e-22
 8.500000000000002e-14

Reference Solution

sol = solve(
    prob, MethodOfSteps(Rodas5P());
    reltol = 1.0e-12, abstol = 1.0e-20, dt = 1.0e-6
)
test_sol = TestSolution(sol)

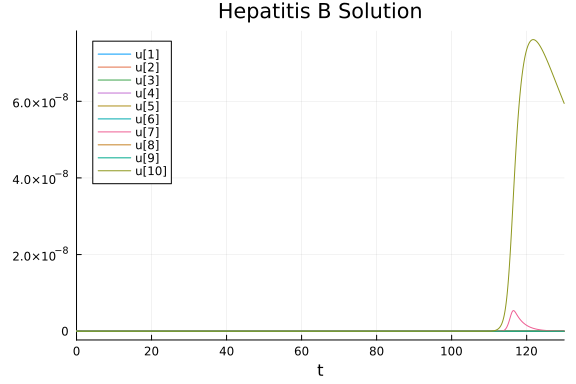

plot(sol; title = "Hepatitis B Solution")

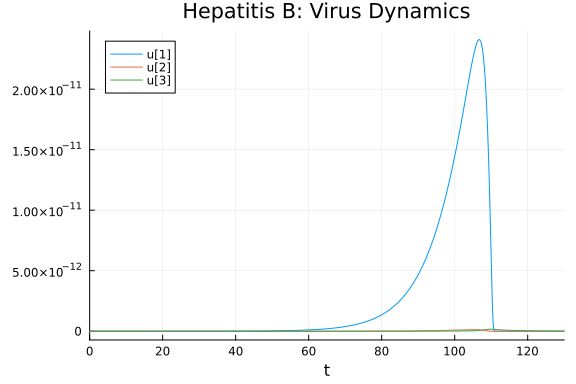

We also plot the first three components (virus dynamics) separately:

plot(sol; idxs = [1, 2, 3], title = "Hepatitis B: Virus Dynamics")

High Tolerances

Rosenbrock methods

abstols = 1.0 ./ 10.0 .^ (4:7)
reltols = 1.0 ./ 10.0 .^ (1:4)

setups = [
    Dict(:alg => MethodOfSteps(Rosenbrock23())),
    Dict(:alg => MethodOfSteps(Rodas4())),
    Dict(:alg => MethodOfSteps(Rodas5())),
    Dict(:alg => MethodOfSteps(Rodas5P())),
]
names = ["Rosenbrock23", "Rodas4", "Rodas5", "Rodas5P"]
wp = WorkPrecisionSet(
    prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :final,
    dt = 1.0e-6
)

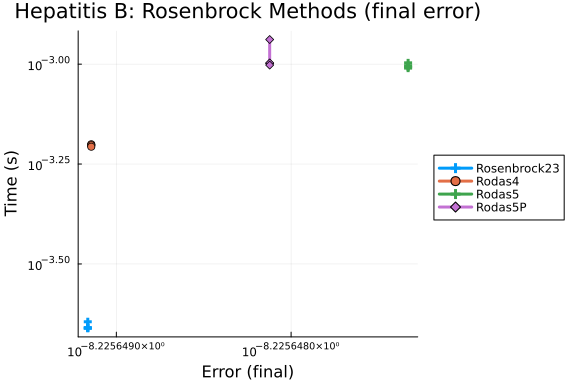

plot(wp; title = "Hepatitis B: Rosenbrock Methods (final error)")

wp = WorkPrecisionSet(
    prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :L2,
    dt = 1.0e-6
)

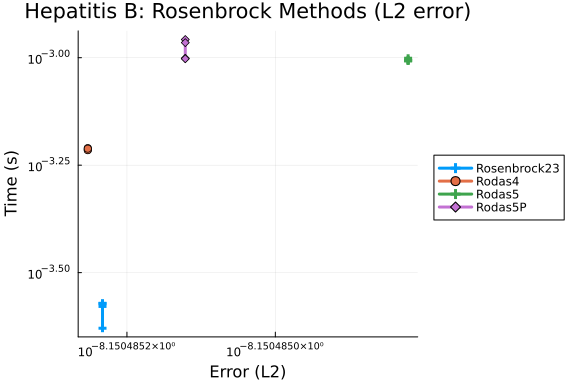

plot(wp; title = "Hepatitis B: Rosenbrock Methods (L2 error)")

SDIRK methods

setups = [
    Dict(:alg => MethodOfSteps(TRBDF2())),
    Dict(:alg => MethodOfSteps(KenCarp4())),
    Dict(:alg => MethodOfSteps(Kvaerno4())),
]
names = ["TRBDF2", "KenCarp4", "Kvaerno4"]
wp = WorkPrecisionSet(
    prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :final,
    dt = 1.0e-6
)

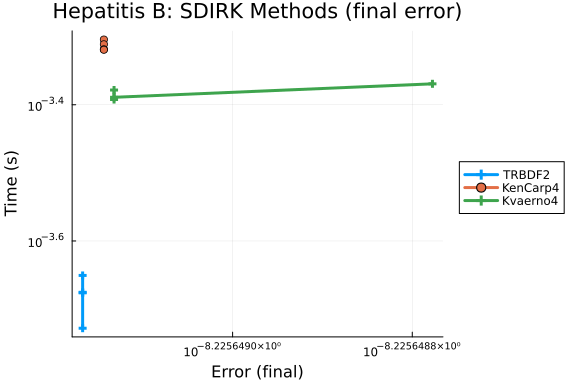

plot(wp; title = "Hepatitis B: SDIRK Methods (final error)")

wp = WorkPrecisionSet(
    prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :L2,
    dt = 1.0e-6
)

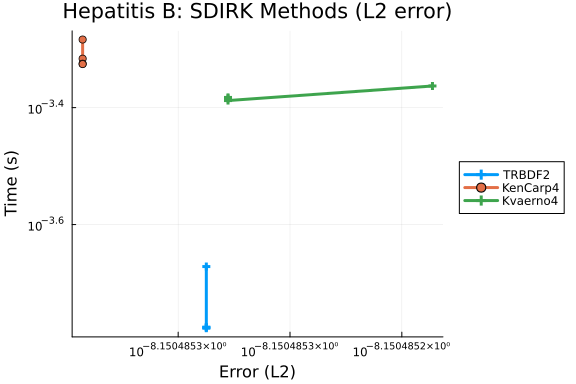

plot(wp; title = "Hepatitis B: SDIRK Methods (L2 error)")

All stiff methods comparison

setups = [
    Dict(:alg => MethodOfSteps(Rosenbrock23())),
    Dict(:alg => MethodOfSteps(Rodas5P())),
    Dict(:alg => MethodOfSteps(TRBDF2())),
    Dict(:alg => MethodOfSteps(KenCarp4())),
]
names = ["Rosenbrock23", "Rodas5P", "TRBDF2", "KenCarp4"]
wp = WorkPrecisionSet(
    prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :final,
    dt = 1.0e-6
)

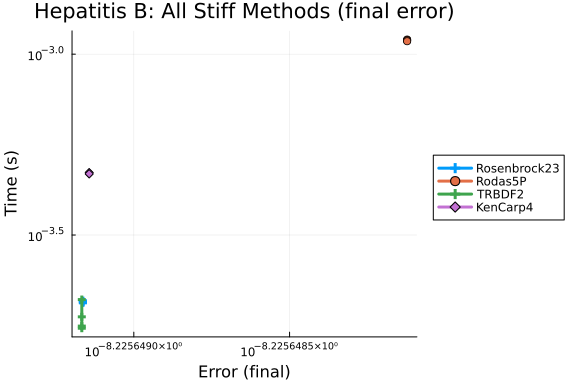

plot(wp; title = "Hepatitis B: All Stiff Methods (final error)")

Low Tolerances

abstols = 1.0 ./ 10.0 .^ (8:11)
reltols = 1.0 ./ 10.0 .^ (5:8)

setups = [
    Dict(:alg => MethodOfSteps(Rosenbrock23())),
    Dict(:alg => MethodOfSteps(Rodas4())),
    Dict(:alg => MethodOfSteps(Rodas5P())),
    Dict(:alg => MethodOfSteps(TRBDF2())),
    Dict(:alg => MethodOfSteps(KenCarp4())),
]
names = ["Rosenbrock23", "Rodas4", "Rodas5P", "TRBDF2", "KenCarp4"]
wp = WorkPrecisionSet(
    prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :final,
    dt = 1.0e-6
)

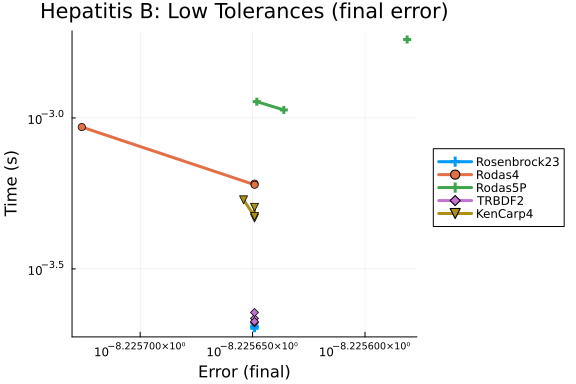

plot(wp; title = "Hepatitis B: Low Tolerances (final error)")

wp = WorkPrecisionSet(
    prob, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :L2,
    dt = 1.0e-6
)

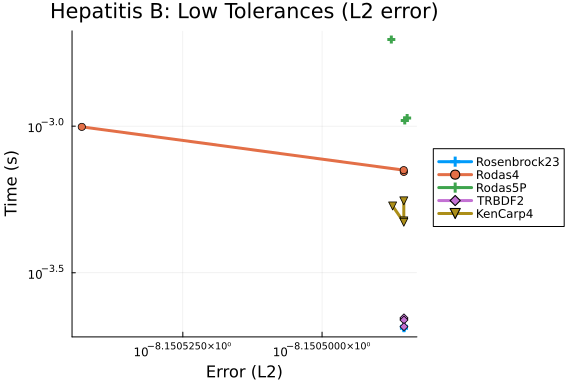

plot(wp; title = "Hepatitis B: Low Tolerances (L2 error)")

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/StiffDDE","Hepatitis_wpd.jmd")
