Beam Work-Precision Diagrams
using OrdinaryDiffEq, DiffEqDevTools, Sundials, Plots, ODEInterfaceDiffEq, LSODA
using OrdinaryDiffEqBDF, OrdinaryDiffEqExtrapolation, OrdinaryDiffEqFIRK, OrdinaryDiffEqRosenbrock, OrdinaryDiffEqSDIRK, OrdinaryDiffEqStabilizedRK
using SciMLLogging
using LinearAlgebra, RecursiveFactorization, Polyester, PreallocationTools, OrdinaryDiffEqCore
gr()
# Beam problem from the IVP Test Set
# ODE of dimension 80 (N=40 discretization points, 2*N unknowns)
# Describes the deformation of a beam under an applied force
# Exact translation from Fortran feval subroutine at:
# http://archimede.dm.uniba.it/~testset/src/problems/beam.f
const N_beam = 40
const NN_beam = 2 * N_beam
const NSQ_beam = N_beam * N_beam
const NQUATR_beam = NSQ_beam * NSQ_beam
const DELTAS_beam = 1.0 / N_beam
# Pre-allocate work buffers using DiffCache for ForwardDiff compatibility
const _beam_sth = DiffCache(zeros(N_beam))
const _beam_cth = DiffCache(zeros(N_beam))
const _beam_v = DiffCache(zeros(N_beam))
const _beam_w = DiffCache(zeros(N_beam))
const _beam_alpha = DiffCache(zeros(N_beam))
const _beam_beta = DiffCache(zeros(N_beam))
const _beam_u = DiffCache(zeros(N_beam))
function beam!(df, th, p, t)
N = N_beam
NN = NN_beam
sth = get_tmp(_beam_sth, df)
cth = get_tmp(_beam_cth, df)
v = get_tmp(_beam_v, df)
w = get_tmp(_beam_w, df)
alpha = get_tmp(_beam_alpha, df)
beta = get_tmp(_beam_beta, df)
u = get_tmp(_beam_u, df)
# Precompute sin and cos of differences (indices 2:N only)
for i in 2:N
thdiff = th[i] - th[i-1]
sth[i] = sin(thdiff)
cth[i] = cos(thdiff)
end
# Compute right-hand side of the linear system
if t > pi
# Case t > pi: no external force
v[1] = (-3.0*th[1] + th[2]) * NQUATR_beam
for i in 2:N-1
v[i] = (th[i-1] - 2.0*th[i] + th[i+1]) * NQUATR_beam
end
v[N] = (th[N-1] - th[N]) * NQUATR_beam
else
# Case t <= pi: with applied force
fabs = 1.5 * sin(t)^2
fx = -fabs
fy = fabs
v[1] = (-3.0*th[1] + th[2]) * NQUATR_beam +
NSQ_beam * (fy*cos(th[1]) - fx*sin(th[1]))
for i in 2:N-1
v[i] = (th[i-1] - 2.0*th[i] + th[i+1]) * NQUATR_beam +
NSQ_beam * (fy*cos(th[i]) - fx*sin(th[i]))
end
v[N] = (th[N-1] - th[N]) * NQUATR_beam +
NSQ_beam * (fy*cos(th[N]) - fx*sin(th[N]))
end
# Compute product DV = W
w[1] = sth[2] * v[2]
for i in 2:N-1
w[i] = -sth[i]*v[i-1] + sth[i+1]*v[i+1]
end
w[N] = -sth[N] * v[N-1]
# Add term 3: w[i] += th[N+i]^2
for i in 1:N
w[i] += th[N+i]^2
end
# Solve tridiagonal system CW = W
alpha[1] = 1.0
for i in 2:N
alpha[i] = 2.0
beta[i-1] = -cth[i]
end
alpha[N] = 3.0
# Forward elimination
for i in N-1:-1:1
q = beta[i] / alpha[i+1]
w[i] = w[i] - w[i+1] * q
alpha[i] = alpha[i] - beta[i] * q
end
# Back substitution
w[1] = w[1] / alpha[1]
for i in 2:N
w[i] = (w[i] - beta[i-1]*w[i-1]) / alpha[i]
end
# Compute U = CV + DW
u[1] = v[1] - cth[2]*v[2] + sth[2]*w[2]
for i in 2:N-1
u[i] = 2.0*v[i] - cth[i]*v[i-1] - cth[i+1]*v[i+1] -
sth[i]*w[i-1] + sth[i+1]*w[i+1]
end
u[N] = 3.0*v[N] - cth[N]*v[N-1] - sth[N]*w[N-1]
# Put derivatives in right place
for i in 1:N
df[i] = th[N+i] # theta' = omega
df[N+i] = u[i] # omega' = u
end
end
u0 = zeros(NN_beam)
tspan = (0.0, 5.0)
prob = ODEProblem{true, SciMLBase.FullSpecialize}(beam!, u0, tspan)
# Generate reference solution using tight tolerances
# The beam problem is moderately stiff and needs many steps
sol = solve(prob, CVODE_BDF(), abstol=1/10^14, reltol=1/10^14, maxiters=Int(1e7))
test_sol = TestSolution(sol)
abstols = 1.0 ./ 10.0 .^ (4:11)
reltols = 1.0 ./ 10.0 .^ (1:8);The Beam problem describes the dynamics of a flexible beam under an applied force. The beam is discretized into N=40 segments, giving 80 ODEs (40 angles + 40 angular velocities). The force is applied for t ∈ [0, π] and then released, causing the beam to oscillate.

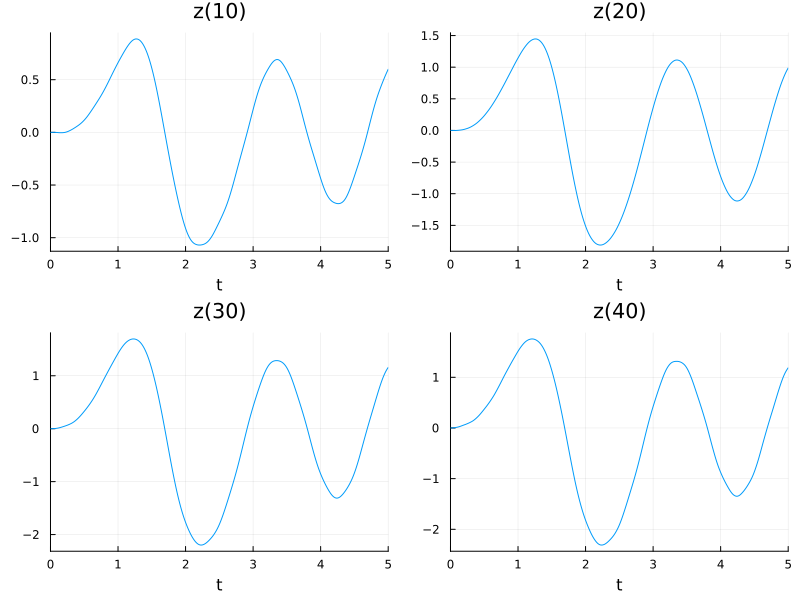

Reference plots from the IVP Test Set show the angular velocities z(10), z(20), z(30), z(40) (components 50, 60, 70, 80) peaking around t=1-2 and oscillating:
# Plot angular velocities matching reference: z(10)=y(50), z(20)=y(60), z(30)=y(70), z(40)=y(80)
p1 = plot(sol, idxs=[50], title="z(10)", legend=false)
p2 = plot(sol, idxs=[60], title="z(20)", legend=false)
p3 = plot(sol, idxs=[70], title="z(30)", legend=false)
p4 = plot(sol, idxs=[80], title="z(40)", legend=false)
plot(p1, p2, p3, p4, layout=(2,2), size=(800,600))�Ptmux;��_Gi=1719413160,f=100,a=q,U=1;iVBORw0KGgoAAAANSUhEUgAAAAEAAAABCAYAA
AAfFcSJAAAABmJLR0QA/wD/AP+gvaeTAAAAC0lEQVQImWNgAAIAAAUAAWJVMogAAAAASUVORK5C
YII=��\�\�Ptmux;��_Gi=1719413160,f=100,a=q;iVBORw0KGgoAAAANSUhEUgAAAAEAAAAB
CAYAAAAfFcSJAAAABmJLR0QA/wD/AP+gvaeTAAAAC0lEQVQImWNgAAIAAAUAAWJVMogAAAAASUV
ORK5CYII=��\�\�Ptmux;��]1337;Capabilities��\�\

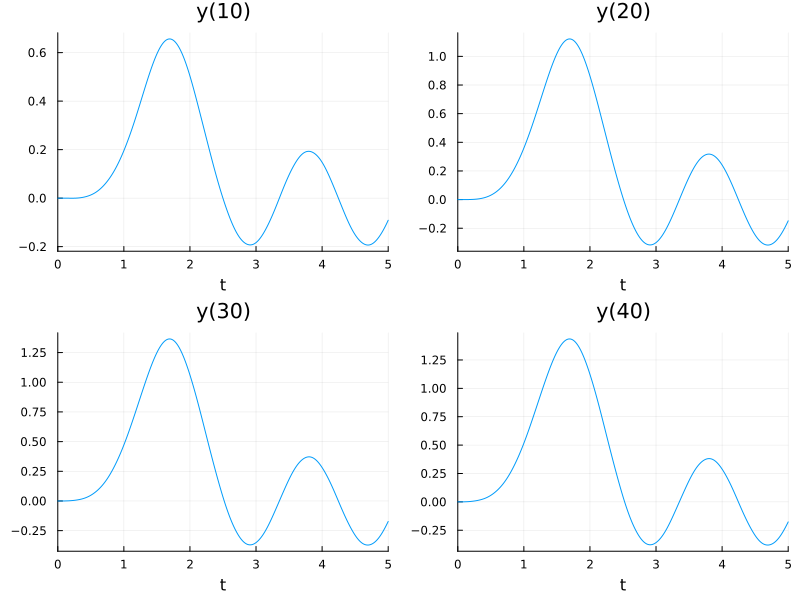

# Plot angles: y(10), y(20), y(30), y(40)
p1 = plot(sol, idxs=[10], title="y(10)", legend=false)
p2 = plot(sol, idxs=[20], title="y(20)", legend=false)
p3 = plot(sol, idxs=[30], title="y(30)", legend=false)
p4 = plot(sol, idxs=[40], title="y(40)", legend=false)
plot(p1, p2, p3, p4, layout=(2,2), size=(800,600))
Omissions
The following were omitted from the tests due to convergence failures.
#sol = solve(prob,ROCK2()); # Unstable
#sol = solve(prob,ROCK4()); # UnstableHigh Tolerances
abstols = 1.0 ./ 10.0 .^ (5:8)
reltols = 1.0 ./ 10.0 .^ (1:4);

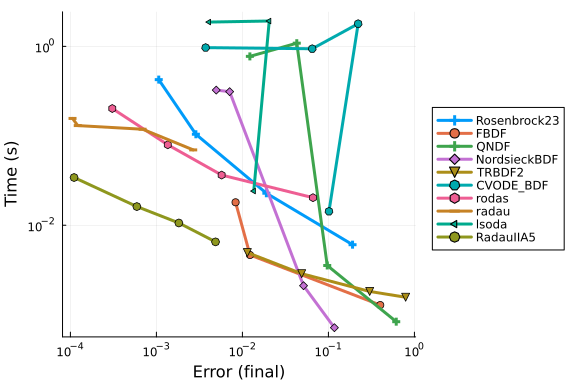

setups = [Dict(:alg=>Rosenbrock23()),
Dict(:alg=>FBDF()),
Dict(:alg=>QNDF()),
Dict(:alg=>NordsieckBDF()),
Dict(:alg=>TRBDF2()),
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>rodas()),
Dict(:alg=>radau()),
Dict(:alg=>lsoda()),
Dict(:alg=>RadauIIA5()),
]
wp = WorkPrecisionSet(prob,abstols,reltols,setups;verbose=SciMLLogging.None(),
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)
plot(wp)

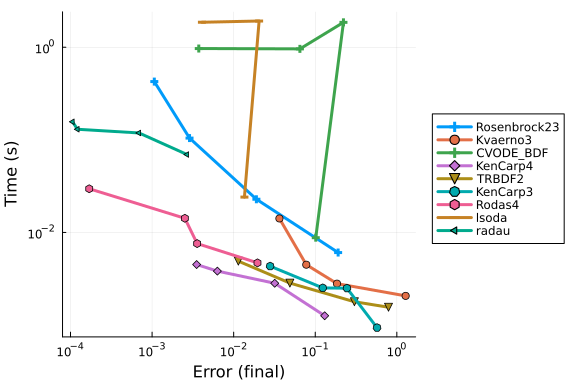

setups = [Dict(:alg=>Rosenbrock23()),
Dict(:alg=>Kvaerno3()),
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>KenCarp4()),
Dict(:alg=>TRBDF2()),
Dict(:alg=>KenCarp3()),
Dict(:alg=>Rodas4()),
Dict(:alg=>lsoda()),
Dict(:alg=>radau())]
wp = WorkPrecisionSet(prob,abstols,reltols,setups; verbose=SciMLLogging.None(),
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)
plot(wp)

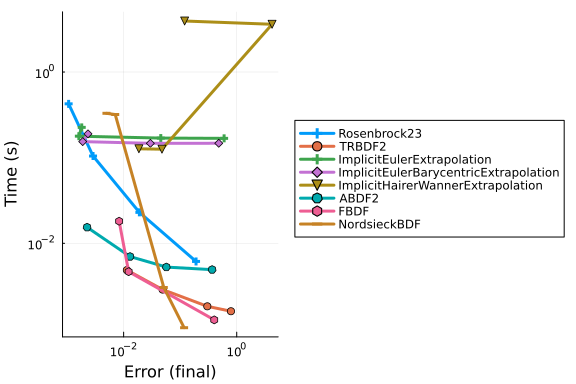

setups = [Dict(:alg=>Rosenbrock23()),
Dict(:alg=>TRBDF2()),
Dict(:alg=>ImplicitEulerExtrapolation()),
Dict(:alg=>ImplicitEulerBarycentricExtrapolation()),
Dict(:alg=>ImplicitHairerWannerExtrapolation()),
Dict(:alg=>ABDF2()),
Dict(:alg=>FBDF()),
Dict(:alg=>NordsieckBDF()),
]
wp = WorkPrecisionSet(prob,abstols,reltols,setups; verbose=SciMLLogging.None(),
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)
plot(wp)
Low Tolerances
This is the speed at lower tolerances, measuring what's good when accuracy is needed.
abstols = 1.0 ./ 10.0 .^ (7:12)
reltols = 1.0 ./ 10.0 .^ (4:9)

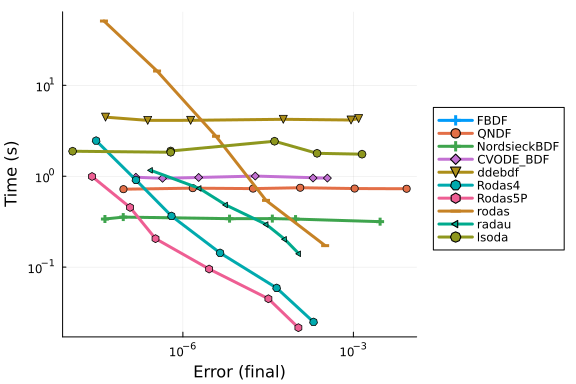

setups = [Dict(:alg=>FBDF()),
Dict(:alg=>QNDF()),
Dict(:alg=>NordsieckBDF()),
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>ddebdf()),
Dict(:alg=>Rodas4()),
Dict(:alg=>Rodas5P()),
Dict(:alg=>rodas()),
Dict(:alg=>radau()),
Dict(:alg=>lsoda()),
]
wp = WorkPrecisionSet(prob,abstols,reltols,setups;verbose=SciMLLogging.None(),
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)
plot(wp)EXIT OF RODAS AT X= 0.2879E+01
MORE THAN NMAX = 100000 STEPS ARE NEEDED

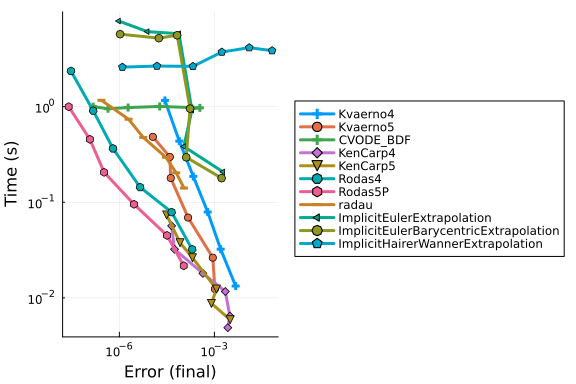

setups = [Dict(:alg=>Kvaerno4()),
Dict(:alg=>Kvaerno5()),
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>KenCarp4()),
Dict(:alg=>KenCarp5()),
Dict(:alg=>Rodas4()),
Dict(:alg=>Rodas5P()),
Dict(:alg=>radau()),
Dict(:alg=>ImplicitEulerExtrapolation()),
Dict(:alg=>ImplicitEulerBarycentricExtrapolation()),
Dict(:alg=>ImplicitHairerWannerExtrapolation()),
]
wp = WorkPrecisionSet(prob,abstols,reltols,setups; verbose=SciMLLogging.None(),
save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)
plot(wp)

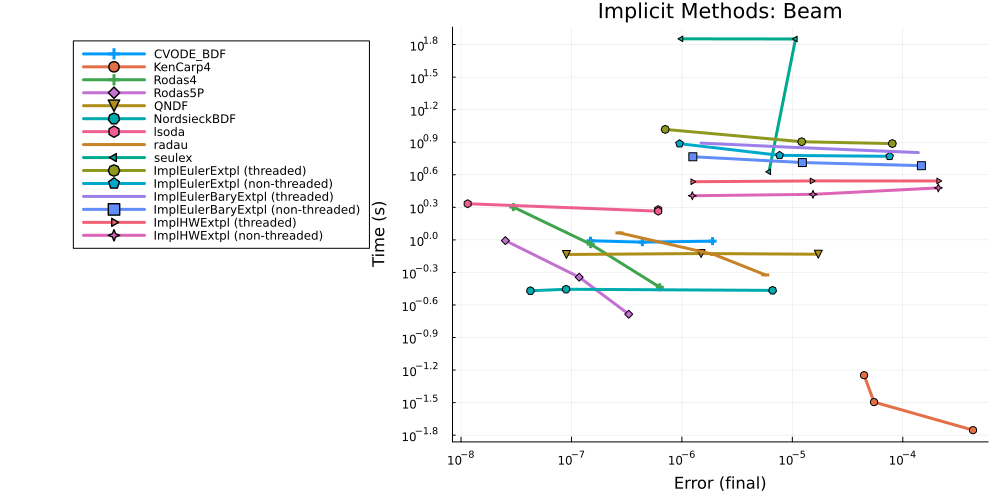

Multithreading benchmarks with Parallel Extrapolation Methods
#Setting BLAS to one thread to measure gains
LinearAlgebra.BLAS.set_num_threads(1)
abstols = 1.0 ./ 10.0 .^ (10:12)
reltols = 1.0 ./ 10.0 .^ (7:9)
setups = [
Dict(:alg=>CVODE_BDF()),
Dict(:alg=>KenCarp4()),
Dict(:alg=>Rodas4()),
Dict(:alg=>Rodas5P()),
Dict(:alg=>QNDF()),
Dict(:alg=>NordsieckBDF()),
Dict(:alg=>lsoda()),
Dict(:alg=>radau()),
Dict(:alg=>seulex()),
Dict(:alg=>ImplicitEulerExtrapolation(threading = OrdinaryDiffEqCore.PolyesterThreads())),
Dict(:alg=>ImplicitEulerExtrapolation(threading = false)),
Dict(:alg=>ImplicitEulerBarycentricExtrapolation(min_order = 4, threading = OrdinaryDiffEqCore.PolyesterThreads())),
Dict(:alg=>ImplicitEulerBarycentricExtrapolation(min_order = 4, threading = false)),
Dict(:alg=>ImplicitHairerWannerExtrapolation(threading = OrdinaryDiffEqCore.PolyesterThreads())),
Dict(:alg=>ImplicitHairerWannerExtrapolation(threading = false)),
]
solnames = ["CVODE_BDF","KenCarp4","Rodas4","Rodas5P","QNDF","NordsieckBDF","lsoda","radau","seulex","ImplEulerExtpl (threaded)", "ImplEulerExtpl (non-threaded)",
"ImplEulerBaryExtpl (threaded)","ImplEulerBaryExtpl (non-threaded)","ImplHWExtpl (threaded)","ImplHWExtpl (non-threaded)"]
wp = WorkPrecisionSet(prob,abstols,reltols,setups; verbose=SciMLLogging.None(),
names = solnames,save_everystep=false,appxsol=test_sol,maxiters=Int(1e5),numruns=10)
plot(wp, title = "Implicit Methods: Beam",legend=:outertopleft,size = (1000,500),
xticks = 10.0 .^ (-15:1:1),
yticks = 10.0 .^ (-6:0.3:5),
bottom_margin= 5Plots.mm)
Conclusion
The Beam problem is an 80-dimensional stiff ODE from structural mechanics. It involves solving a tridiagonal system at each RHS evaluation, which adds computational cost per function evaluation. CVODE_BDF and Rodas4/Rodas5P perform well across tolerance ranges. The implicit extrapolation methods benefit from multithreading on this larger problem.
Appendix
These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.
To locally run this benchmark, do the following commands:
using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/StiffODE","Beam.jmd")Computer Information:
