PSO Global Optimizer Benchmarks

This benchmark evaluates Particle Swarm Optimization (PSO) variants from ParallelParticleSwarms.jl against established global optimizers on the BlackBoxOptimizationBenchmarking.jl suite (v2 API), using the Optimization.jl interface.

Setup

using Random
Random.seed!(42)

using BlackBoxOptimizationBenchmarking, CairoMakie, Optimization, Memoize, Statistics
CairoMakie.activate!()
import BlackBoxOptimizationBenchmarking: Chain, BenchmarkSetup, BenchmarkResults,
    BBOBFunction, FunctionCallsCounter, solve_problem, pinit, compute_CI
const BBOB = BlackBoxOptimizationBenchmarking

using OptimizationBBO, OptimizationOptimJL, OptimizationEvolutionary, OptimizationNLopt
using OptimizationMetaheuristics, OptimizationSciPy

using ParallelParticleSwarms
using ForwardDiff
using KernelAbstractions
using CUDA
using StaticArrays, LinearAlgebra

const PSOKernel     = ParallelParticleSwarms.ParallelPSOKernel
const SyncPSOKernel = ParallelParticleSwarms.ParallelSyncPSOKernel
const SerialPSOAlgorithm = ParallelParticleSwarms.SerialPSO
const HPso          = ParallelParticleSwarms.HybridPSO

const BACKEND = CUDABackend()

CUDA.CUDAKernels.CUDABackend(false, false)

const MK_MARKERS = [:circle, :rect, :utriangle, :diamond, :dtriangle, :pentagon,
    :cross, :xcross, :star4, :star5, :hexagon, :star6, :ltriangle, :rtriangle]
const MK_LINESTYLES = [:solid, :dash, :dot, :dashdot, (:dot, :dense)]

function solve_problem_baseline(optimizer::Union{Chain, BenchmarkSetup}, f, D::Int,
        run_length::Int)
    solve_problem(optimizer, f, D, run_length)
end

function benchmark_time_to_success(
    optimizer::Union{Chain, BenchmarkSetup}, funcs::Vector{<:BBOBFunction};
    Ntrials::Int = 15, dimension::Int = 3, Δf::Real = 1e-6, max_run_length::Int = 100_000
)
    all_times = Float64[]
    for f in funcs
        for _ in 1:Ntrials
            t0  = time()
            sol = solve_problem_baseline(optimizer, f, dimension, max_run_length)
            elapsed = time() - t0
            push!(all_times, sol.objective < Δf + f.f_opt ? elapsed : Inf)
        end
    end
    return all_times
end

benchmark_time_to_success(optimizer, funcs::Vector{<:BBOBFunction}; kwargs...) =
    benchmark_time_to_success(BenchmarkSetup(optimizer), funcs; kwargs...)

function success_rate_cdf(all_times::Vector{Float64}, time_thresholds::AbstractVector{Float64})
    N = length(all_times)
    return [count(x -> x <= t, all_times) / N for t in time_thresholds]
end

success_rate_cdf (generic function with 1 method)

_to_f64(x::Real) = Float64(x)
_to_f64(x::ForwardDiff.Dual) = Float64(ForwardDiff.value(x))
_to_f64(x)       = Float64(x[])

_value(x::Real) = x
_value(x::ForwardDiff.Dual) = ForwardDiff.value(x)
_penalty(x) = eltype(x) <: ForwardDiff.Dual ? zero(first(x)) + 1.0f10 : 1.0f10

function pso_objective(f::BBOBFunction, x)
    any(xi -> !isfinite(_value(xi)) || abs(_value(xi)) > 15, x) && return _penalty(x)
    y = f(x)
    y isa ForwardDiff.Dual ? y : Float32(y)
end

function _pso_problem(f::BBOBFunction, D::Int; x0 = nothing)
    optf = OptimizationFunction{false}((x, p) -> pso_objective(f, x), Optimization.SciMLBase.NoAD())
    lb   = SVector{D, Float32}(ntuple(_ -> -5.0f0, Val(D)))
    ub   = SVector{D, Float32}(ntuple(_ ->  5.0f0, Val(D)))
    x0   = x0 === nothing ?
        SVector{D, Float32}(ntuple(_ -> -5.0f0 + rand(Float32) * 10.0f0, Val(D))) :
        SVector{D, Float32}(x0)
    OptimizationProblem{false}(optf, x0, nothing; lb, ub)
end

function pso_solve(opt, f::BBOBFunction, D::Int, maxiters::Int;
        local_maxiters::Int = 50, x0 = nothing)
    prob = _pso_problem(f, D; x0)
    if opt isa HPso
        solve(prob, opt; maxiters, local_maxiters, abstol = 1.0f-8, reltol = 1.0f-8)
    else
        solve(prob, opt; maxiters)
    end
end

function _extract_u(sol, D)
    u = sol.u
    u isa SVector && return u
    u isa AbstractVector && return SVector{D}(u)
    u[]
end

function pso_benchmark(opt, funcs, run_length;
        Ntrials = 15, dimension = 3, local_maxiters = 50, Δf = 1e-6, CI_quantile = 0.25,
        n_particles = 1)
    Nf = length(funcs); Nr = length(run_length)
    success = zeros(Float64, Nf, Nr)
    dist    = zeros(Float64, Nf, Nr)
    fmin    = zeros(Float64, Nf, Nr)
    t0 = time()
    for (fi, f) in enumerate(funcs)
        xopt = SVector{dimension, Float32}(f.x_opt[1:dimension])
        for (ri, rl) in enumerate(run_length)
            hits = 0; dsum = 0.0; fsum = 0.0
            for _ in 1:Ntrials
                sol = pso_solve(opt, f, dimension, rl; local_maxiters)
                u    = _extract_u(sol, dimension)
                fval = _to_f64(sol.objective)
                hits += abs(fval - f.f_opt) < Δf ? 1 : 0
                dsum += Float64(norm(u .- xopt))
                fsum += fval - f.f_opt
            end
            success[fi, ri] = hits / Ntrials
            dist[fi, ri]    = dsum / Ntrials
            fmin[fi, ri]    = fsum / Ntrials
        end
    end
    elapsed = time() - t0
    Neff = Ntrials * Nf
    sr   = vec(mean(success, dims = 1))
    sc   = vec(sum(success .* Ntrials, dims = 1)) .|> round .|> Int
    ci   = BBOB.compute_CI(sr, Neff, CI_quantile)
    BenchmarkResults(
        run_length                = collect(run_length),
        success_count             = sc,
        success_rate              = sr,
        success_rate_qlow         = ci.success_rate_qlow,
        success_rate_qhigh        = ci.success_rate_qhigh,
        distance_to_minimizer     = vec(mean(dist, dims = 1)),
        minimum                   = vec(mean(fmin, dims = 1)),
        runtime                   = elapsed,
        Neffective                = Neff,
        callcount                 = Float64.(run_length) .* n_particles,
        success_rate_per_function = [success[fi, end] for fi in 1:Nf],
    )
end

function pso_tts(opt, funcs; Ntrials = 15, dimension = 3, Δf = 1e-6,
        local_maxiters = 50, max_run_length = 100_000)
    all_times = Float64[]
    D = dimension
    for f in funcs
        for _ in 1:Ntrials
            x0   = SVector{D, Float32}(ntuple(_ -> -5.0f0 + rand(Float32) * 10.0f0, Val(D)))
            prob = _pso_problem(f, D; x0)
            t0 = time()
            sol = if opt isa HPso
                solve(prob, opt; maxiters = max_run_length,
                      local_maxiters, abstol = 1.0f-8, reltol = 1.0f-8)
            else
                solve(prob, opt; maxiters = max_run_length)
            end
            elapsed = time() - t0
            fval = _to_f64(sol.objective)
            push!(all_times, abs(fval - f.f_opt) < Δf ? elapsed : Inf)
        end
    end
    all_times
end

pso_tts (generic function with 1 method)

chain = (t; isboxed = false) -> Chain(
    BenchmarkSetup(t, isboxed = isboxed),
    BenchmarkSetup(NelderMead(), isboxed = false),
    0.9)

dimension      = 3
# Exclude unstable BBOB functions: f4 Buche-Rastrigin, f7 Step-Ellipsoidal (segfault),
# f10 Ellipsoidal-2 (illegal access).
test_functions = filter(f -> nameof(f.f) ∉ (:f4, :f7, :f10), BBOB.bbob_suite(Val(dimension)))
run_length     = round.(Int, 10 .^ LinRange(1, 5, 30))
Ntrials        = 40
num_particles  = 5_000

const SUCCESS_Δf = 1e-6

PSO_KEYS = Set(["SerialPSO", "PSOKernel", "SyncPSOKernel", "HybridPSO_LBFGS"])

setup = Dict(
    "NelderMead"                       => NelderMead(),
    "NLopt.GN_CRS2_LM()"               => chain(NLopt.GN_CRS2_LM(), isboxed = true),
    "NLopt.GN_DIRECT()"                => chain(NLopt.GN_DIRECT(), isboxed = true),
    "NLopt.GN_ESCH()"                  => chain(NLopt.GN_ESCH(), isboxed = true),
    "OptimizationEvolutionary.GA()"    => chain(OptimizationEvolutionary.GA(), isboxed = true),
    "OptimizationEvolutionary.DE()"    => chain(OptimizationEvolutionary.DE(), isboxed = true),
    "OptimizationEvolutionary.ES()"    => chain(OptimizationEvolutionary.ES(), isboxed = true),
    "Optim.SAMIN"                      => chain(SAMIN(verbosity = 0), isboxed = true),
    "BBO_adaptive_de_rand_1_bin"       => chain(BBO_adaptive_de_rand_1_bin(), isboxed = true),
    "BBO_de_rand_2_bin"                => chain(BBO_de_rand_2_bin(), isboxed = true),
    "OptimizationMetaheuristics.ECA"   => chain(OptimizationMetaheuristics.ECA(), isboxed = true),
    "OptimizationMetaheuristics.DE"    => chain(OptimizationMetaheuristics.DE(), isboxed = true),
    "ScipyDifferentialEvolution"       => chain(ScipyDifferentialEvolution(), isboxed = true),
    "SerialPSO"        => SerialPSOAlgorithm(512),
    "PSOKernel"        => PSOKernel(num_particles; backend = BACKEND, global_update = true),
    "SyncPSOKernel"    => SyncPSOKernel(num_particles; backend = BACKEND),
    "HybridPSO_LBFGS"  => HPso(pso = SyncPSOKernel(num_particles; backend = BACKEND); backend = BACKEND),
)

@memoize run_bench(algo) = algo in PSO_KEYS ?
    pso_benchmark(setup[algo], test_functions, run_length;
        Ntrials, dimension, Δf = SUCCESS_Δf,
        n_particles = algo == "SerialPSO" ? 512 : num_particles) :
    BBOB.benchmark(setup[algo], test_functions, run_length;
        Ntrials, Δf = SUCCESS_Δf)

@memoize run_tts(algo) = algo in PSO_KEYS ?
    pso_tts(setup[algo], test_functions;
        Ntrials, dimension, Δf = SUCCESS_Δf, max_run_length = 100_000) :
    benchmark_time_to_success(setup[algo], test_functions;
        Ntrials, dimension, Δf = SUCCESS_Δf, max_run_length = 100_000)

run_tts (generic function with 1 method)

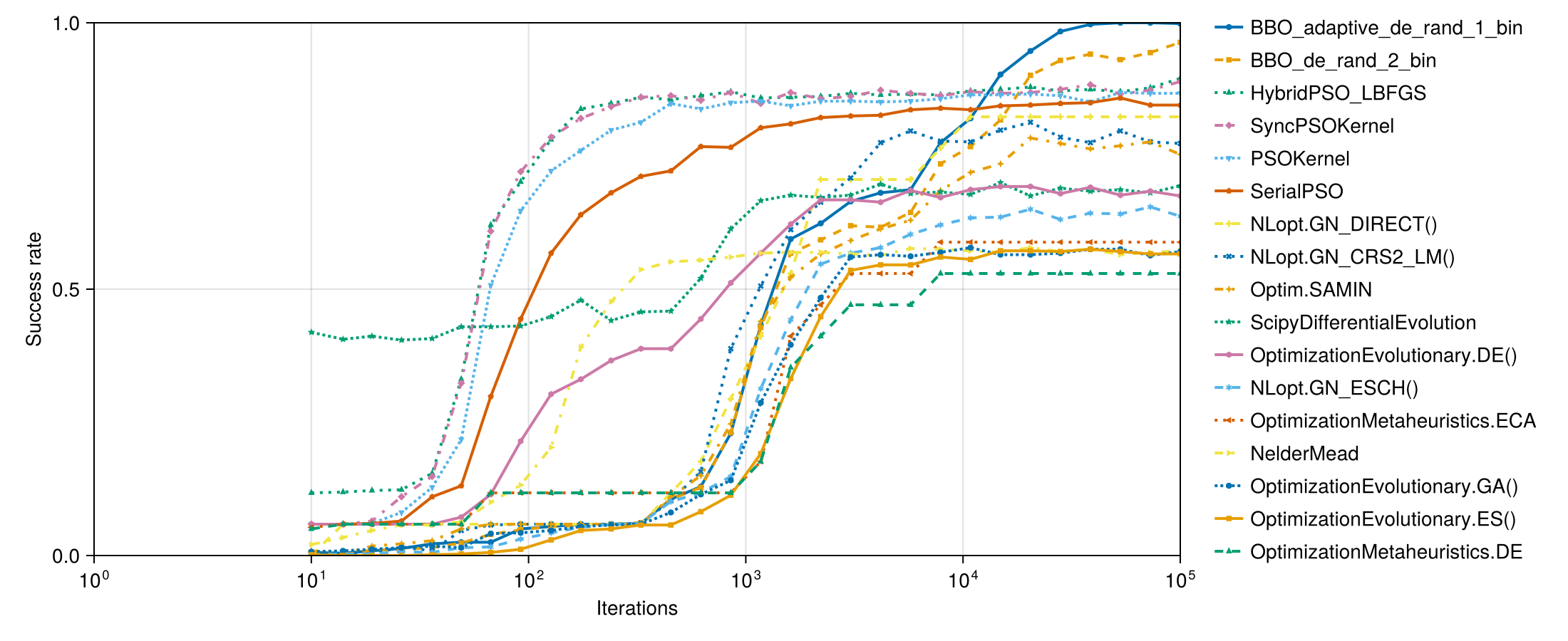

Test all (iterations)

labels  = collect(keys(setup))
results = Array{BBOB.BenchmarkResults}(undef, length(setup))

for (i, algo) in enumerate(labels)
    algo in PSO_KEYS || continue
    results[i] = run_bench(algo)
    @info "PSO success rate" algo success_rate = round(results[i].success_rate[end], digits = 3)
end

for (i, algo) in enumerate(labels)
    algo in PSO_KEYS && continue
    results[i] = run_bench(algo)
end

results

17-element Vector{BlackBoxOptimizationBenchmarking.BenchmarkResults}:
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.00735294, 0.00882353, 0.0117647, 0.0147059, 0.0176471, 0.
0147059, 0.0411765, 0.0426471, 0.0470588, 0.0544118  …  0.561765, 0.569118,
 0.577941, 0.564706, 0.564706, 0.567647, 0.575, 0.575, 0.563235, 0.570588]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.0205882, 0.0338235, 0.0470588, 0.0573529, 0.0573529, 0.06
32353, 0.1, 0.132353, 0.202941, 0.391176  …  0.576471, 0.575, 0.572059, 0.5
69118, 0.577941, 0.570588, 0.575, 0.564706, 0.569118, 0.572059]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.00294118, 0.00147059, 0.0102941, 0.0117647, 0.0147059, 0.
0235294, 0.0397059, 0.0485294, 0.0544118, 0.0558824  …  0.644118, 0.735294,
 0.767647, 0.817647, 0.901471, 0.929412, 0.941176, 0.930882, 0.944118, 0.96
3235]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.00588235, 0.00441176, 0.00882353, 0.0132353, 0.0220588, 0
.025, 0.025, 0.05, 0.0544118, 0.0588235  …  0.686765, 0.775, 0.820588, 0.90
2941, 0.947059, 0.983824, 0.997059, 1.0, 1.0, 0.998529]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.0, 0.0588235, 0.0588235, 0.0588235, 0.0588235, 0.0588235,
 0.0588235, 0.0588235, 0.0588235, 0.0588235  …  0.705882, 0.764706, 0.82352
9, 0.823529, 0.823529, 0.823529, 0.823529, 0.823529, 0.823529, 0.823529]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.00147059, 0.00294118, 0.00294118, 0.00735294, 0.00588235,
 0.0147059, 0.0161765, 0.0308824, 0.0426471, 0.0529412  …  0.602941, 0.6205
88, 0.633824, 0.635294, 0.65, 0.630882, 0.642647, 0.641176, 0.654412, 0.636
765]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.05, 0.0588235, 0.0588235, 0.0588235, 0.0588235, 0.0588235
, 0.117647, 0.117647, 0.117647, 0.117647  …  0.470588, 0.529412, 0.529412,
0.529412, 0.529412, 0.529412, 0.529412, 0.529412, 0.529412, 0.529412]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.00147059, 0.0, 0.0, 0.0, 0.00147059, 0.00294118, 0.005882
35, 0.0117647, 0.0294118, 0.0470588  …  0.545588, 0.560294, 0.555882, 0.572
059, 0.572059, 0.570588, 0.575, 0.570588, 0.566176, 0.566176]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.0588235, 0.0588235, 0.0602941, 0.0808824, 0.127941, 0.217
647, 0.507353, 0.647059, 0.722059, 0.760294  …  0.852941, 0.857353, 0.86470
6, 0.864706, 0.866176, 0.863235, 0.851471, 0.869118, 0.867647, 0.867647]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.419118, 0.405882, 0.411765, 0.404412, 0.407353, 0.429412,
 0.429412, 0.430882, 0.448529, 0.479412  …  0.679412, 0.682353, 0.677941, 0
.7, 0.675, 0.689706, 0.683824, 0.686765, 0.680882, 0.694118]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.0588235, 0.0588235, 0.0647059, 0.110294, 0.148529, 0.3235
29, 0.608824, 0.720588, 0.785294, 0.820588  …  0.867647, 0.863235, 0.870588
, 0.867647, 0.869118, 0.875, 0.883824, 0.866176, 0.873529, 0.889706]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.0588235, 0.0588235, 0.0602941, 0.0647059, 0.110294, 0.130
882, 0.298529, 0.444118, 0.567647, 0.639706  …  0.836765, 0.839706, 0.83676
5, 0.844118, 0.845588, 0.848529, 0.85, 0.858824, 0.845588, 0.845588]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.0588235, 0.0588235, 0.0588235, 0.0588235, 0.0588235, 0.07
20588, 0.114706, 0.214706, 0.302941, 0.330882  …  0.685294, 0.672059, 0.686
765, 0.692647, 0.692647, 0.679412, 0.691176, 0.676471, 0.683824, 0.675]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.117647, 0.119118, 0.122059, 0.123529, 0.154412, 0.330882,
 0.620588, 0.701471, 0.780882, 0.838235  …  0.866176, 0.864706, 0.872059, 0
.875, 0.879412, 0.872059, 0.875, 0.870588, 0.877941, 0.895588]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.0529412, 0.0588235, 0.0588235, 0.0588235, 0.0588235, 0.05
88235, 0.117647, 0.117647, 0.117647, 0.117647  …  0.529412, 0.588235, 0.588
235, 0.588235, 0.588235, 0.588235, 0.588235, 0.588235, 0.588235, 0.588235]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.00147059, 0.00147059, 0.00294118, 0.0161765, 0.00882353,
0.0470588, 0.0573529, 0.0588235, 0.0588235, 0.0588235  …  0.797059, 0.77794
1, 0.776471, 0.798529, 0.813235, 0.785294, 0.775, 0.797059, 0.776471, 0.773
529]
 BenchmarkResults :
Run length : [10, 14, 19, 26, 36, 49, 67, 92, 127, 174  …  5736, 7880, 1082
6, 14874, 20434, 28072, 38566, 52983, 72790, 100000]
Success rate : [0.00882353, 0.00294118, 0.0176471, 0.0220588, 0.0279412, 0.
05, 0.0588235, 0.0588235, 0.0588235, 0.0588235  …  0.629412, 0.685294, 0.71
9118, 0.735294, 0.783824, 0.773529, 0.763235, 0.769118, 0.776471, 0.752941]

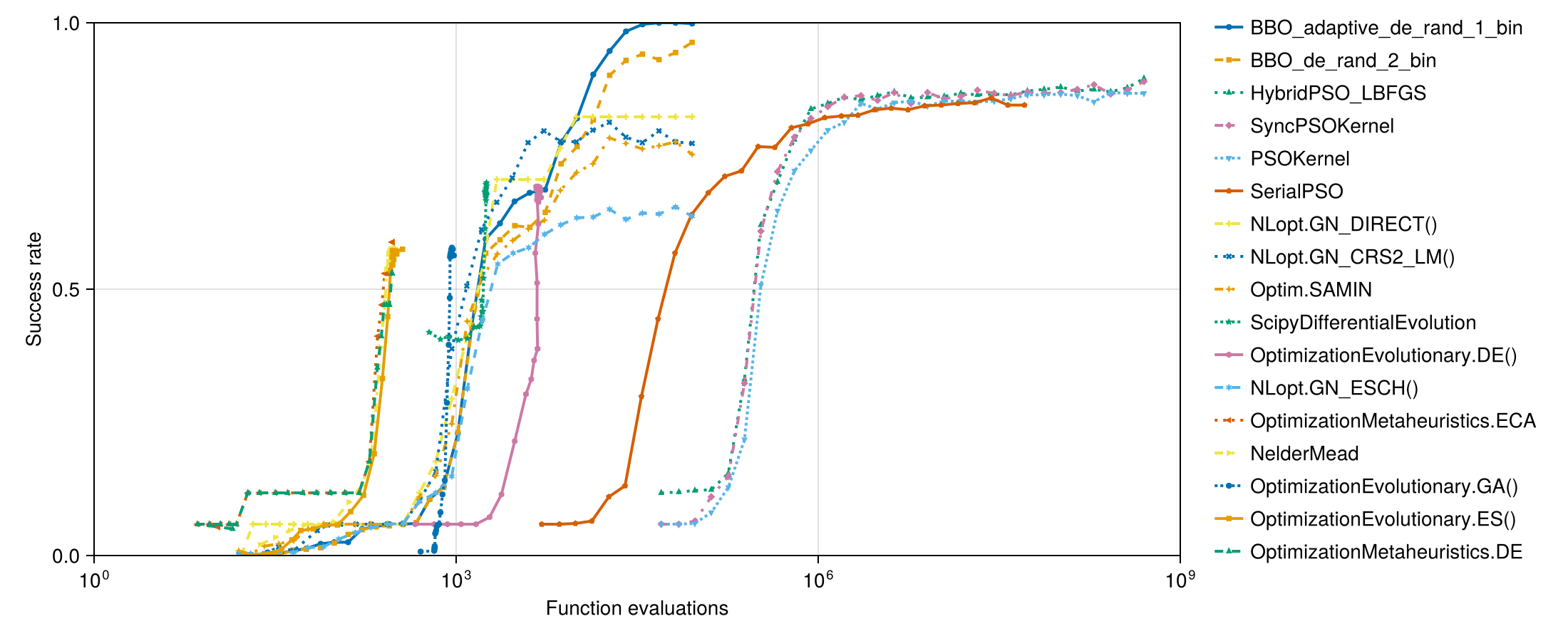

Success Rate vs. Function Evaluations

labels = collect(keys(setup))
idx = sortperm([b.success_rate[end] for b in results], rev = true)

fig = Figure(size = (1100, 450))
ax = Axis(fig[1, 1]; xscale = log10, xlabel = "Function evaluations",
    ylabel = "Success rate", limits = (1, 1e9, 0, 1))
for (j, i) in enumerate(idx)
    scatterlines!(ax, results[i].callcount, results[i].success_rate;
        label = labels[i], linewidth = 2, markersize = 6,
        marker = MK_MARKERS[mod1(j, length(MK_MARKERS))],
        linestyle = MK_LINESTYLES[mod1(j, length(MK_LINESTYLES))])
end
Legend(fig[1, 2], ax; framevisible = false)
fig

Success Rate vs. Iterations

labels = collect(keys(setup))
idx = sortperm([b.success_rate[end] for b in results], rev = true)

fig = Figure(size = (1100, 450))
ax = Axis(fig[1, 1]; xscale = log10, xlabel = "Iterations",
    ylabel = "Success rate", limits = (1, 1e5, 0, 1))
for (j, i) in enumerate(idx)
    scatterlines!(ax, results[i].run_length, results[i].success_rate;
        label = labels[i], linewidth = 2, markersize = 6,
        marker = MK_MARKERS[mod1(j, length(MK_MARKERS))],
        linestyle = MK_LINESTYLES[mod1(j, length(MK_LINESTYLES))])
end
Legend(fig[1, 2], ax; framevisible = false)
fig

Test all (wall-clock time to success)

tts_results = Dict{String, Vector{Float64}}()

for algo in labels
    algo in PSO_KEYS || continue
    tts_results[algo] = run_tts(algo)
end

for algo in labels
    algo in PSO_KEYS && continue
    tts_results[algo] = run_tts(algo)
end

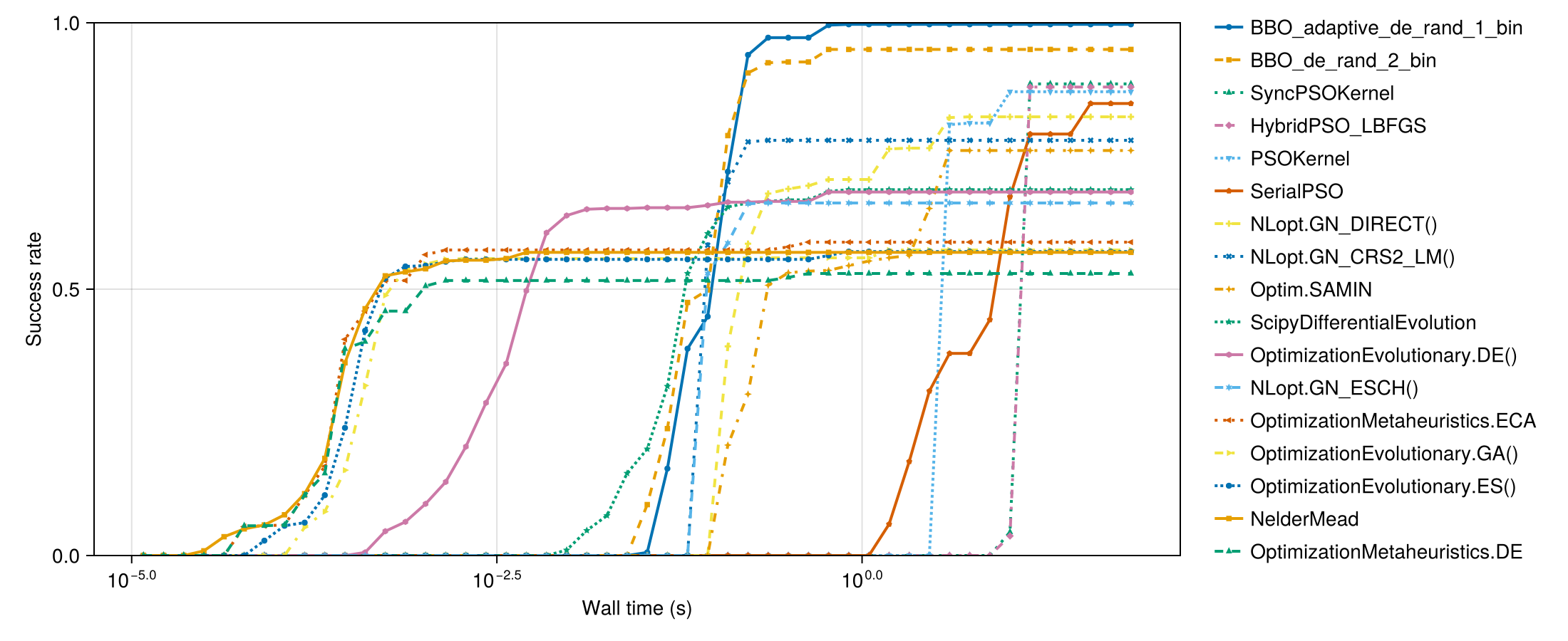

Success Rate vs. Wall-Clock Time

labels = collect(keys(setup))

all_finite = filter(isfinite, vcat(values(tts_results)...))
time_thresholds = 10 .^ range(log10(minimum(all_finite) / 2),
    log10(maximum(all_finite) * 2), length = 50)

cdfs = Dict(l => success_rate_cdf(tts_results[l], time_thresholds) for l in labels)
idx = sortperm([cdfs[l][end] for l in labels], rev = true)

fig = Figure(size = (1100, 450))
ax = Axis(fig[1, 1]; xscale = log10, xlabel = "Wall time (s)",
    ylabel = "Success rate", limits = (nothing, nothing, 0, 1))
for (j, i) in enumerate(idx)
    scatterlines!(ax, time_thresholds, cdfs[labels[i]];
        label = labels[i], linewidth = 2, markersize = 6,
        marker = MK_MARKERS[mod1(j, length(MK_MARKERS))],
        linestyle = MK_LINESTYLES[mod1(j, length(MK_LINESTYLES))])
end
Legend(fig[1, 2], ax; framevisible = false)
fig

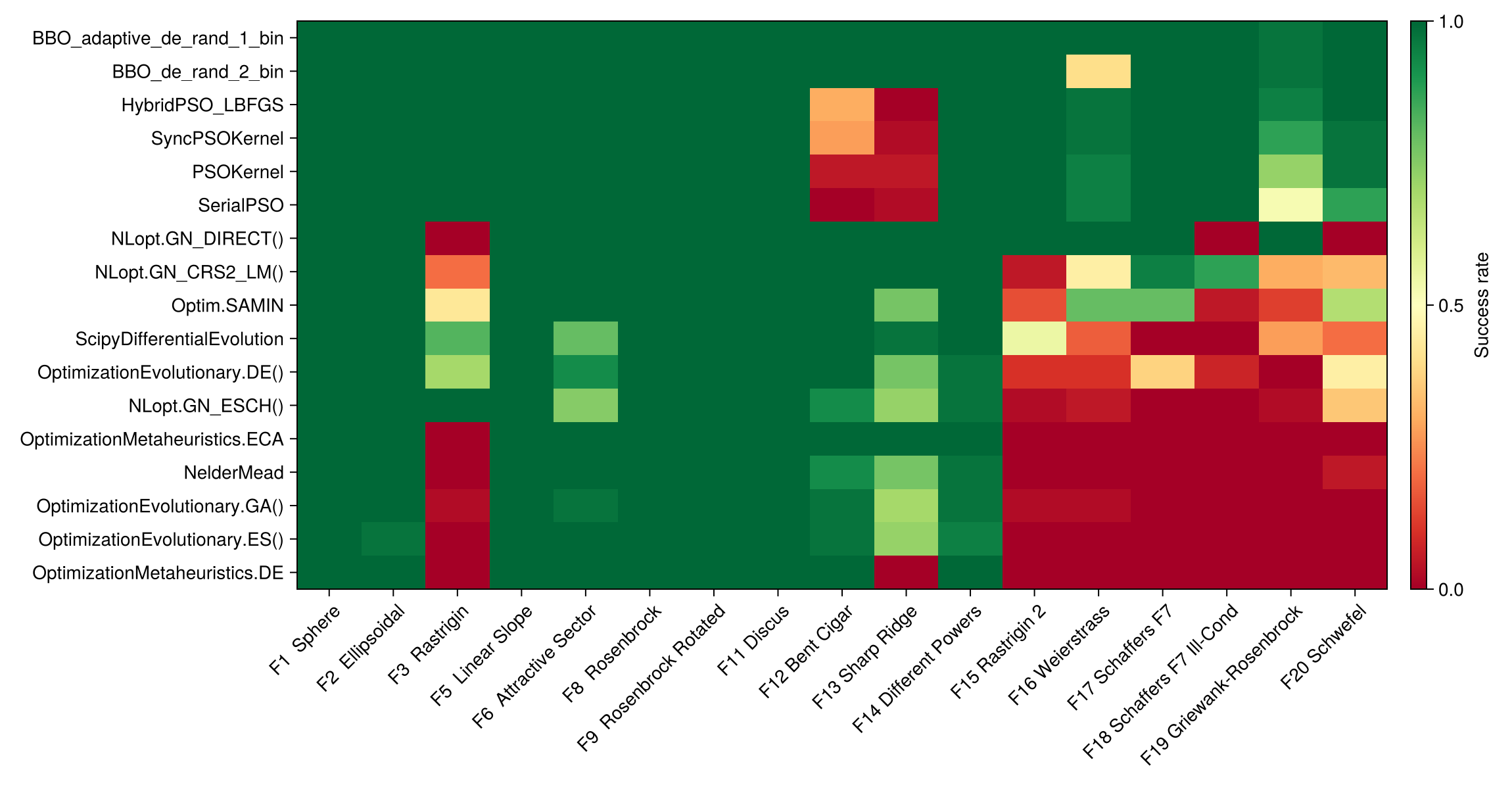

Success Rate per Function Heatmap

labels = collect(keys(setup))
success_rate_per_function = reduce(hcat, b.success_rate_per_function for b in results)
idx = sortperm(vec(mean(success_rate_per_function, dims = 1)), rev = false)

data = success_rate_per_function[:, idx]
fnames = string.(test_functions)
anames = labels[idx]

fig = Figure(size = (1150, 600))
ax = Axis(fig[1, 1]; xticks = (1:length(fnames), fnames),
    yticks = (1:length(anames), anames), xticklabelrotation = π / 4)
hm = heatmap!(ax, 1:length(fnames), 1:length(anames), data;
    colormap = :RdYlGn, colorrange = (0, 1))
Colorbar(fig[1, 2], hm; label = "Success rate")
fig

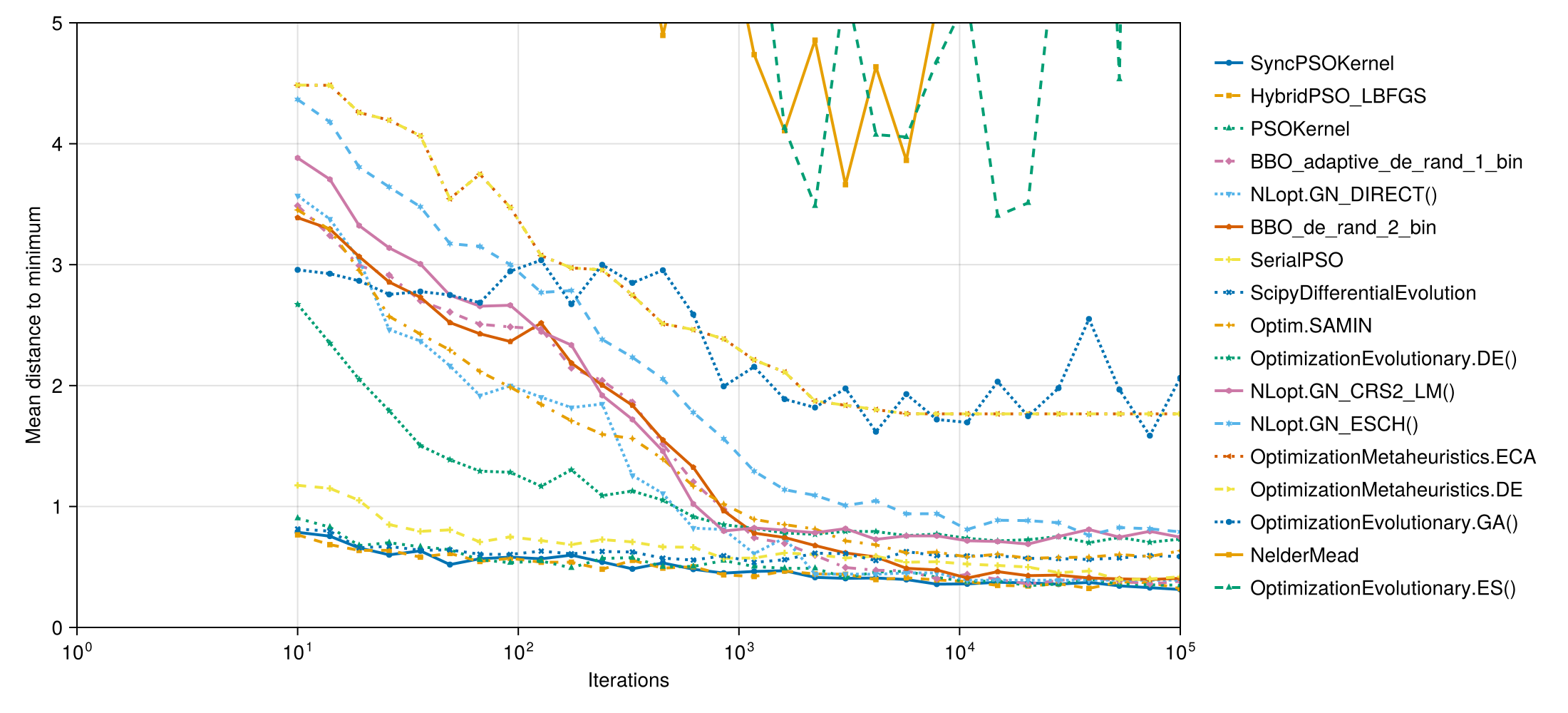

Distance to Minimizer vs. Iterations

labels = collect(keys(setup))
idx = sortperm([b.distance_to_minimizer[end] for b in results], rev = false)

fig = Figure(size = (1100, 500))
ax = Axis(fig[1, 1]; xscale = log10, xlabel = "Iterations",
    ylabel = "Mean distance to minimum", limits = (1, 1e5, 0, 5))
for (j, i) in enumerate(idx)
    scatterlines!(ax, results[i].run_length, results[i].distance_to_minimizer;
        label = labels[i], linewidth = 2, markersize = 6,
        marker = MK_MARKERS[mod1(j, length(MK_MARKERS))],
        linestyle = MK_LINESTYLES[mod1(j, length(MK_LINESTYLES))])
end
Legend(fig[1, 2], ax; framevisible = false)
fig

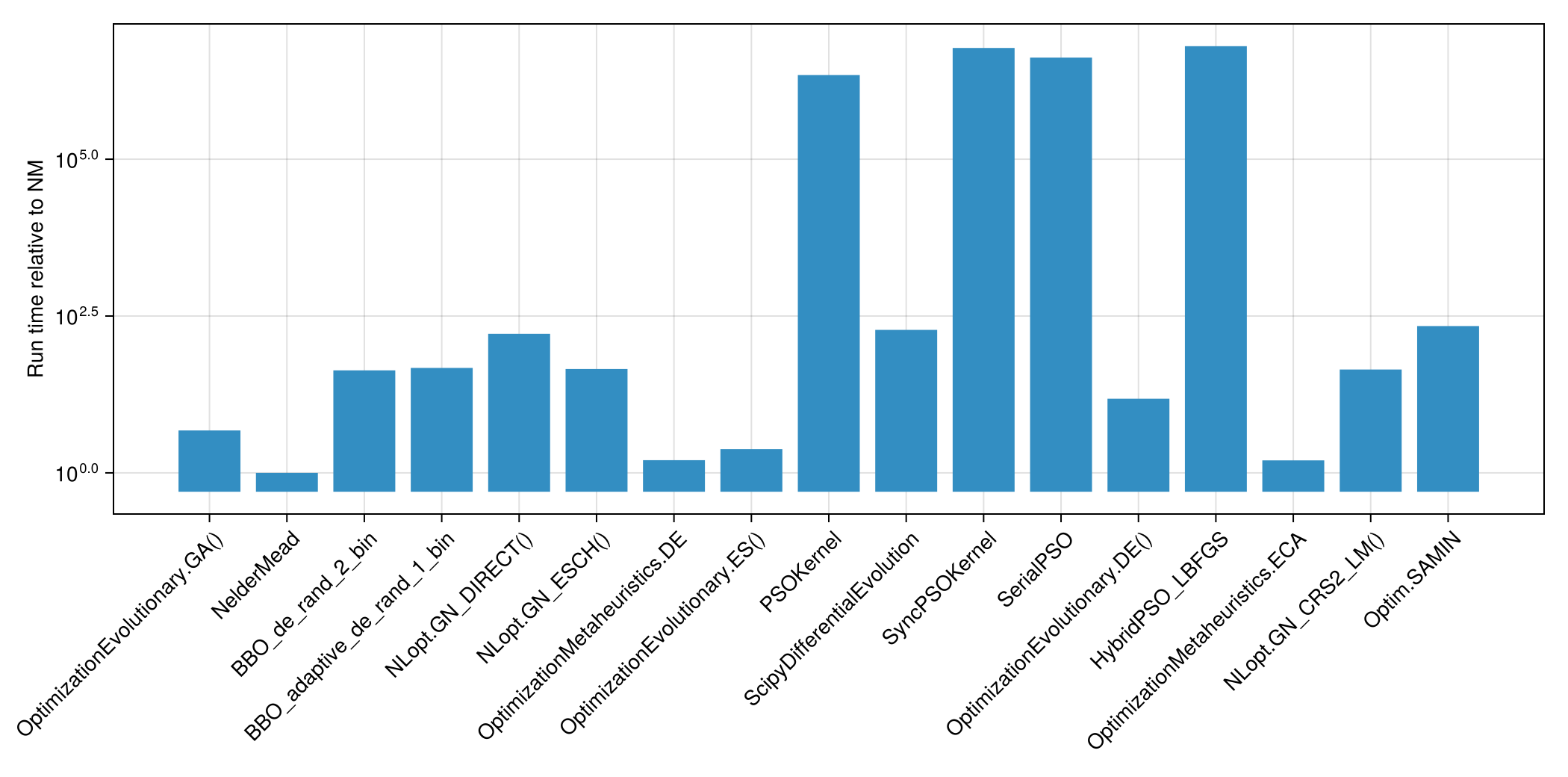

Relative Runtime

labels = collect(keys(setup))
ref = findfirst(==("NelderMead"), labels)
runtimes = getfield.(results, :runtime)
runtimes = runtimes ./ runtimes[ref]

fig = Figure(size = (1050, 520))
ax = Axis(fig[1, 1]; yscale = log10, ylabel = "Run time relative to NM",
    xticks = (1:length(labels), labels), xticklabelrotation = π / 4)
barplot!(ax, 1:length(labels), runtimes)
fig
