Enright-Pryce Work-Precision Diagrams

Enright-Pryce Suite

The purpose of this benchmark is to test explicit Runge-Kutta methods on the Enright-Pryce test suite, a collection of non-stiff ODE problems designed for testing numerical integrators.

using OrdinaryDiffEq, ParameterizedFunctions, ODEInterface,
      ODEInterfaceDiffEq, LSODA, Sundials, DiffEqDevTools,
      StaticArrays, OrdinaryDiffEqSIMDRK
using Plots
gr()

# Load the problems from the Enright-Pryce suite
include(joinpath(@__DIR__, "enright_pryce.jl"))

abstols = 1.0 ./ 10.0 .^ (6:13)
reltols = 1.0 ./ 10.0 .^ (3:10)
8-element Vector{Float64}:
 0.001
 0.0001
 1.0e-5
 1.0e-6
 1.0e-7
 1.0e-8
 1.0e-9
 1.0e-10

SIMD Algorithms

simdrkalgs = [
    Dict(:alg=>MER5v2()),
    Dict(:alg=>MER6v2()),
    Dict(:alg=>RK6v4())
]
3-element Vector{Dict{Symbol}}:
 Dict(:alg => MER5v2(stage_limiter! = trivial_limiter!, step_limiter! = tri
vial_limiter!, thread = FastBroadcast.Serial()))
 Dict(:alg => MER6v2(stage_limiter! = trivial_limiter!, step_limiter! = tri
vial_limiter!, thread = FastBroadcast.Serial()))
 Dict(:alg => RK6v4(stage_limiter! = trivial_limiter!, step_limiter! = triv
ial_limiter!, thread = FastBroadcast.Serial()))

Low Order Setup

setups = [
    Dict(:alg=>Tsit5()),
    Dict(:alg=>Vern6()),
    Dict(:alg=>Vern7()),
    Dict(:alg=>Vern9()),
    simdrkalgs...
]
7-element Vector{Dict{Symbol}}:
 Dict(:alg => OrdinaryDiffEqTsit5.Tsit5{typeof(OrdinaryDiffEqCore.trivial_l
imiter!), typeof(OrdinaryDiffEqCore.trivial_limiter!), FastBroadcast.Serial
}(OrdinaryDiffEqCore.trivial_limiter!, OrdinaryDiffEqCore.trivial_limiter!,
 FastBroadcast.Serial()))
 Dict(:alg => OrdinaryDiffEqVerner.Vern6{typeof(OrdinaryDiffEqCore.trivial_
limiter!), typeof(OrdinaryDiffEqCore.trivial_limiter!), FastBroadcast.Seria
l, Val{true}}(OrdinaryDiffEqCore.trivial_limiter!, OrdinaryDiffEqCore.trivi
al_limiter!, FastBroadcast.Serial(), Val{true}()))
 Dict(:alg => OrdinaryDiffEqVerner.Vern7{typeof(OrdinaryDiffEqCore.trivial_
limiter!), typeof(OrdinaryDiffEqCore.trivial_limiter!), FastBroadcast.Seria
l, Val{true}}(OrdinaryDiffEqCore.trivial_limiter!, OrdinaryDiffEqCore.trivi
al_limiter!, FastBroadcast.Serial(), Val{true}()))
 Dict(:alg => OrdinaryDiffEqVerner.Vern9{typeof(OrdinaryDiffEqCore.trivial_
limiter!), typeof(OrdinaryDiffEqCore.trivial_limiter!), FastBroadcast.Seria
l, Val{true}}(OrdinaryDiffEqCore.trivial_limiter!, OrdinaryDiffEqCore.trivi
al_limiter!, FastBroadcast.Serial(), Val{true}()))
 Dict(:alg => MER5v2(stage_limiter! = trivial_limiter!, step_limiter! = tri
vial_limiter!, thread = FastBroadcast.Serial()))
 Dict(:alg => MER6v2(stage_limiter! = trivial_limiter!, step_limiter! = tri
vial_limiter!, thread = FastBroadcast.Serial()))
 Dict(:alg => RK6v4(stage_limiter! = trivial_limiter!, step_limiter! = triv
ial_limiter!, thread = FastBroadcast.Serial()))

Non-Stiff NA Problems

NA1

prob = NA_PROBLEMS[1]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)

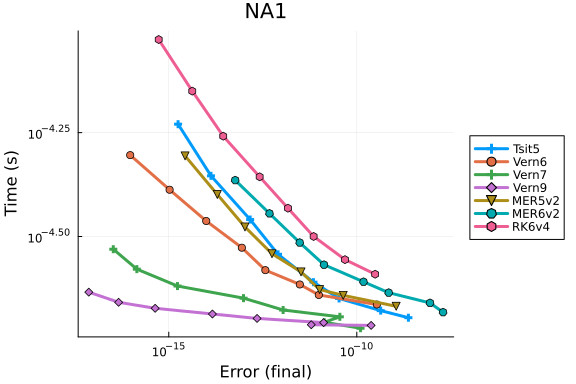

plot(wp; title="NA1")

NA2

prob = NA_PROBLEMS[2]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)

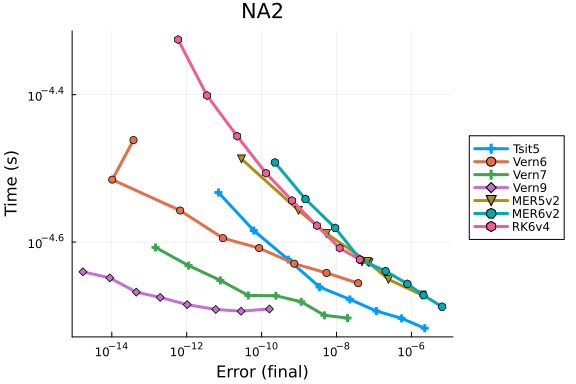

plot(wp; title="NA2")

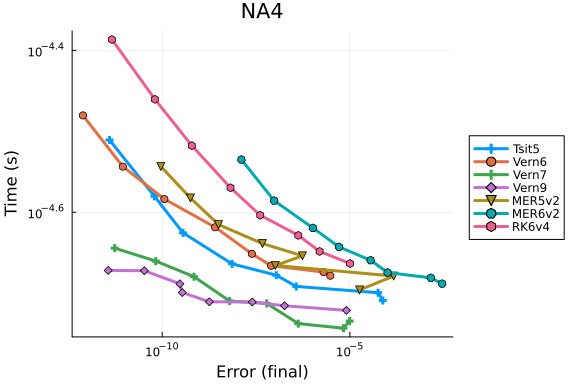

NA4

prob = NA_PROBLEMS[4]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)
plot(wp; title="NA4")

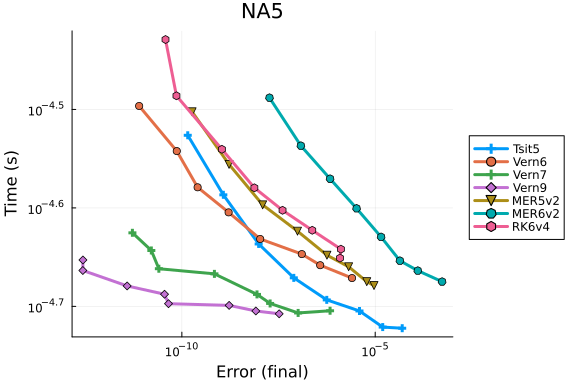

NA5

prob = NA_PROBLEMS[5]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)
plot(wp; title="NA5")

Non-Stiff NB Problems

NB1

prob = NB_PROBLEMS[1]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)
plot(wp; title="NB1")

NB2

prob = NB_PROBLEMS[2]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)

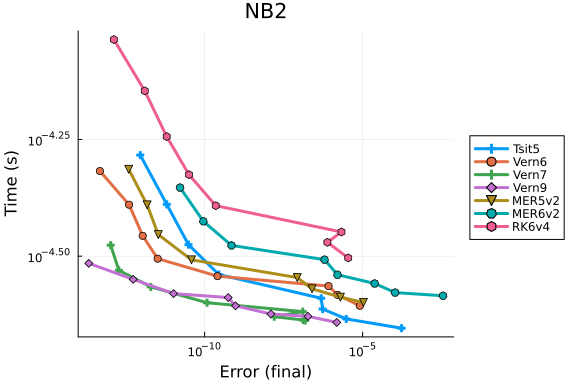

plot(wp; title="NB2")

NB3

prob = NB_PROBLEMS[3]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)

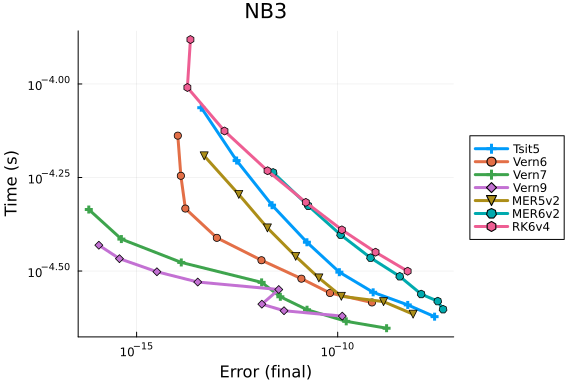

plot(wp; title="NB3")

NB5

prob = NB_PROBLEMS[5]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)

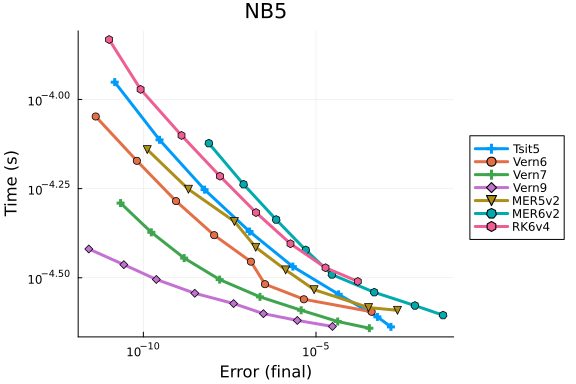

plot(wp; title="NB5")

Non-Stiff NC Problems

NC1

prob = NC_PROBLEMS[1]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)
plot(wp; title="NC1")

NC2

prob = NC_PROBLEMS[2]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)

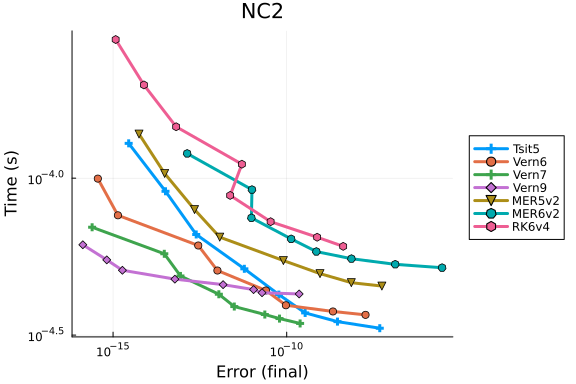

plot(wp; title="NC2")

NC3

prob = NC_PROBLEMS[3]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)

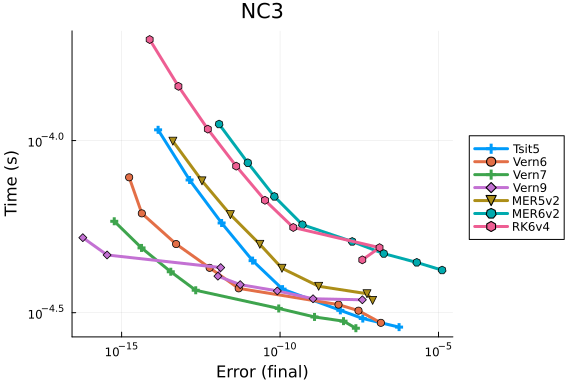

plot(wp; title="NC3")

NC4

prob = NC_PROBLEMS[4]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups; appxsol=test_sol, save_everystep=false, numruns=100)

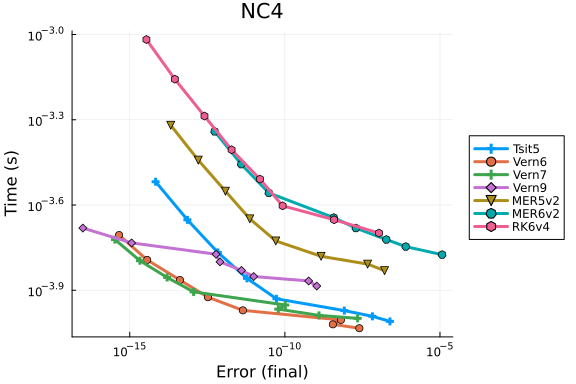

plot(wp; title="NC4")

Non-Stiff ND Problems

The ND suite uses sqrt in the RHS, which triggers a StackOverflowError via NaNMath.sqrt(::VectorizationBase.Vec) when combined with the SIMD-RK stack. Use the non-SIMD subset of setups for these problems.

setups_nd = [
    Dict(:alg=>Tsit5()),
    Dict(:alg=>Vern6()),
    Dict(:alg=>Vern7()),
    Dict(:alg=>Vern9())
]
4-element Vector{Dict{Symbol}}:
 Dict(:alg => OrdinaryDiffEqTsit5.Tsit5{typeof(OrdinaryDiffEqCore.trivial_l
imiter!), typeof(OrdinaryDiffEqCore.trivial_limiter!), FastBroadcast.Serial
}(OrdinaryDiffEqCore.trivial_limiter!, OrdinaryDiffEqCore.trivial_limiter!,
 FastBroadcast.Serial()))
 Dict(:alg => OrdinaryDiffEqVerner.Vern6{typeof(OrdinaryDiffEqCore.trivial_
limiter!), typeof(OrdinaryDiffEqCore.trivial_limiter!), FastBroadcast.Seria
l, Val{true}}(OrdinaryDiffEqCore.trivial_limiter!, OrdinaryDiffEqCore.trivi
al_limiter!, FastBroadcast.Serial(), Val{true}()))
 Dict(:alg => OrdinaryDiffEqVerner.Vern7{typeof(OrdinaryDiffEqCore.trivial_
limiter!), typeof(OrdinaryDiffEqCore.trivial_limiter!), FastBroadcast.Seria
l, Val{true}}(OrdinaryDiffEqCore.trivial_limiter!, OrdinaryDiffEqCore.trivi
al_limiter!, FastBroadcast.Serial(), Val{true}()))
 Dict(:alg => OrdinaryDiffEqVerner.Vern9{typeof(OrdinaryDiffEqCore.trivial_
limiter!), typeof(OrdinaryDiffEqCore.trivial_limiter!), FastBroadcast.Seria
l, Val{true}}(OrdinaryDiffEqCore.trivial_limiter!, OrdinaryDiffEqCore.trivi
al_limiter!, FastBroadcast.Serial(), Val{true}()))

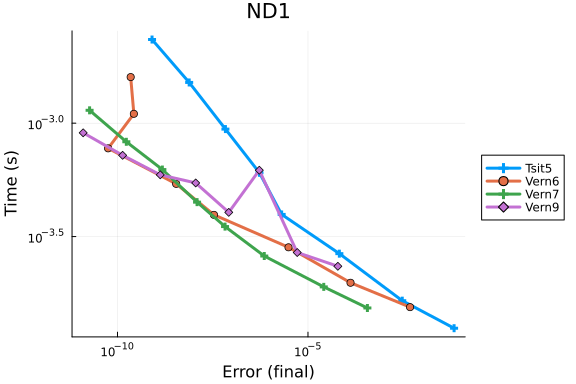

ND1

prob = ND_PROBLEMS[1]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups_nd; appxsol=test_sol, save_everystep=false, numruns=100)
plot(wp; title="ND1")

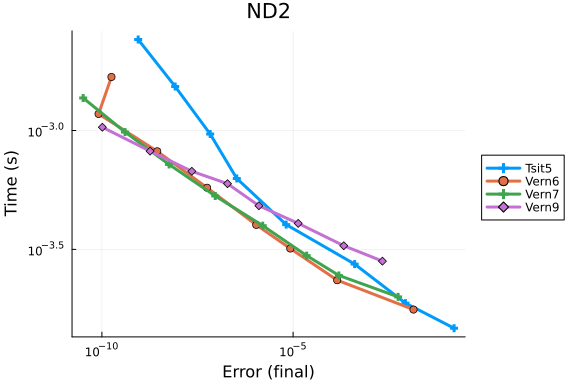

ND2

prob = ND_PROBLEMS[2]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups_nd; appxsol=test_sol, save_everystep=false, numruns=100)
plot(wp; title="ND2")

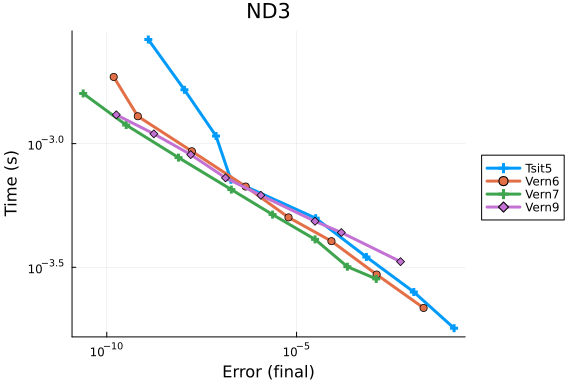

ND3

prob = ND_PROBLEMS[3]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups_nd; appxsol=test_sol, save_everystep=false, numruns=100)
plot(wp; title="ND3")

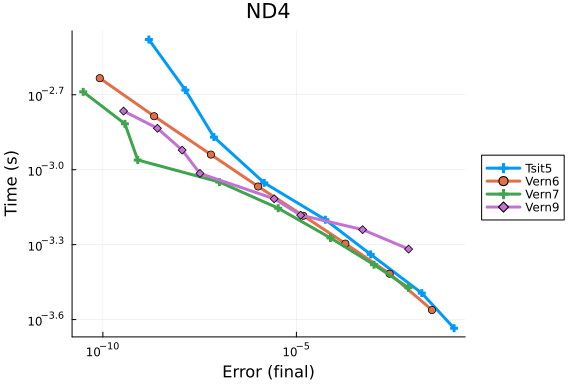

ND4

prob = ND_PROBLEMS[4]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups_nd; appxsol=test_sol, save_everystep=false, numruns=100)
plot(wp; title="ND4")

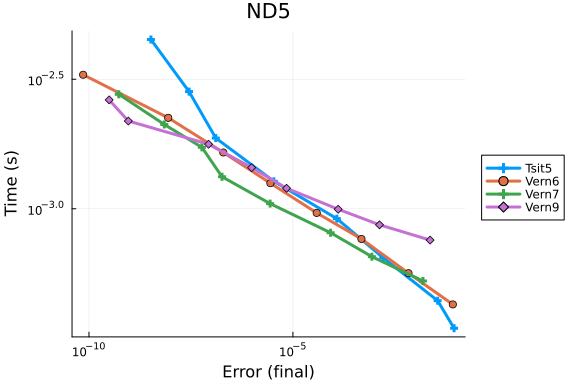

ND5

prob = ND_PROBLEMS[5]
test_sol = solve(prob, Vern9(), abstol=1/10^14, reltol=1/10^14)
wp = WorkPrecisionSet(prob, abstols, reltols, setups_nd; appxsol=test_sol, save_everystep=false, numruns=100)
plot(wp; title="ND5")

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/NonStiffODE","EnrightPryce_wpd.jmd")
