RADAR5 Oregonator Work-Precision Diagrams

RADAR5 Oregonator

This is a stiff delay differential equation model from chemical kinetics, taken from the RADAR5 test suite by Guglielmi and Hairer. The problem is given by

\[u_1'(t) = k_1 A u_2(t) - k_2 u_1(t) u_2(t - \tau) + k_3 B u_1(t) - 2 k_4 u_1(t)^2\]

\[u_2'(t) = -k_1 A u_2(t) - k_2 u_1(t) u_2(t - \tau) + f k_3 B u_1(t)\]

for $t \in [0, 100.5]$ with history function $\phi_1(t) = 10^{-10}$, $\phi_2(t) = 10^{-5}$ for $t \leq 0$, where $k_1 = 1.34$, $k_2 = 1.6 \times 10^9$, $k_3 = 8000$, $k_4 = 4 \times 10^7$, $f = 1$, $A = 0.06$, $B = 0.06$, and $\tau = 0.15$.

This problem is extremely stiff due to the large rate constants ($k_2 = 1.6 \times 10^9$, $k_4 = 4 \times 10^7$). Explicit methods require hundreds of thousands of steps while implicit methods solve it in around 10 steps.

References

Epstein, I. and Luo, Y. (1991). Differential delay equations in chemical kinetics. Nonlinear models, Journal of Chemical Physics (95), pp. 244-254.

Guglielmi, N. and Hairer, E. (2001). Implementing Radau IIA methods for stiff delay differential equations, Computing (67), pp. 1-12.

using DelayDiffEq, DiffEqDevTools, DDEProblemLibrary, Plots
using OrdinaryDiffEqLowOrderRK, OrdinaryDiffEqRosenbrock, OrdinaryDiffEqSDIRK,
    OrdinaryDiffEqTsit5
import DDEProblemLibrary: prob_dde_RADAR5_oregonator
gr()

Plots.GRBackend()

Reference Solution

We compute a reference solution using Rodas5P at very tight tolerances.

sol = solve(
    prob_dde_RADAR5_oregonator, MethodOfSteps(Rodas5P());
    reltol = 1.0e-14, abstol = 1.0e-14
)
test_sol = TestSolution(sol)

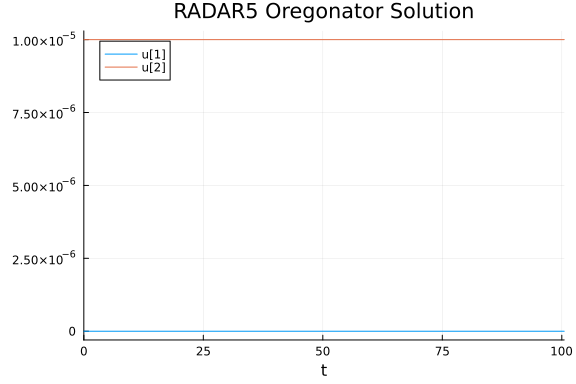

plot(sol; title = "RADAR5 Oregonator Solution")

Qualitative Comparisons

First we compare the quality of the solutions for different algorithms at default tolerances.

Rosenbrock methods

abstols = 1.0 ./ 10.0 .^ (4:7)
reltols = 1.0 ./ 10.0 .^ (1:4)

setups = [
    Dict(:alg => MethodOfSteps(Rosenbrock23())),
    Dict(:alg => MethodOfSteps(Rodas4())),
    Dict(:alg => MethodOfSteps(Rodas5())),
    Dict(:alg => MethodOfSteps(Rodas5P())),
]
names = ["Rosenbrock23", "Rodas4", "Rodas5", "Rodas5P"]
wp = WorkPrecisionSet(
    prob_dde_RADAR5_oregonator, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :final
)

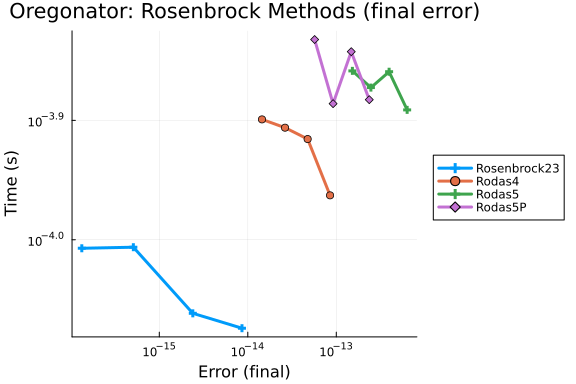

plot(wp; title = "Oregonator: Rosenbrock Methods (final error)")

wp = WorkPrecisionSet(
    prob_dde_RADAR5_oregonator, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :L2
)

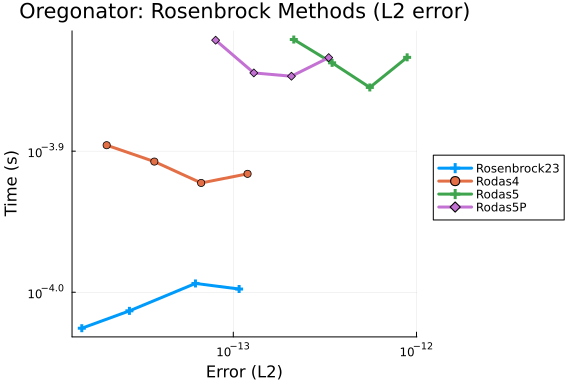

plot(wp; title = "Oregonator: Rosenbrock Methods (L2 error)")

wp = WorkPrecisionSet(
    prob_dde_RADAR5_oregonator, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :L∞
)

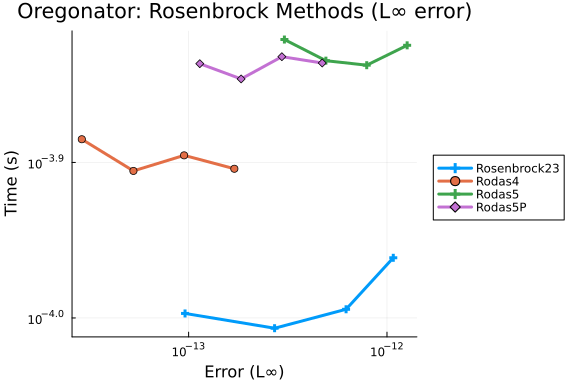

plot(wp; title = "Oregonator: Rosenbrock Methods (L∞ error)")

SDIRK methods

setups = [
    Dict(:alg => MethodOfSteps(TRBDF2())),
    Dict(:alg => MethodOfSteps(SDIRK2())),
    Dict(:alg => MethodOfSteps(KenCarp4())),
    Dict(:alg => MethodOfSteps(Kvaerno4())),
    Dict(:alg => MethodOfSteps(Kvaerno5())),
]
names = ["TRBDF2", "SDIRK2", "KenCarp4", "Kvaerno4", "Kvaerno5"]
wp = WorkPrecisionSet(
    prob_dde_RADAR5_oregonator, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :final
)

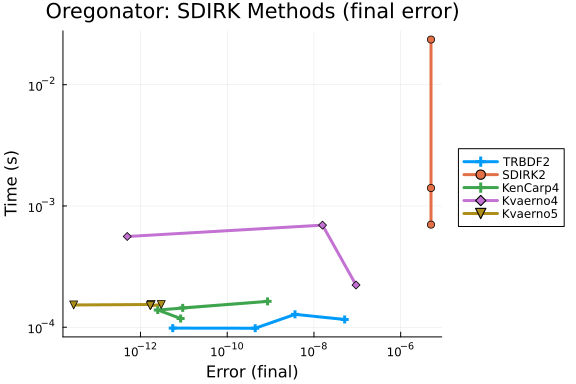

plot(wp; title = "Oregonator: SDIRK Methods (final error)")

wp = WorkPrecisionSet(
    prob_dde_RADAR5_oregonator, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :L2
)

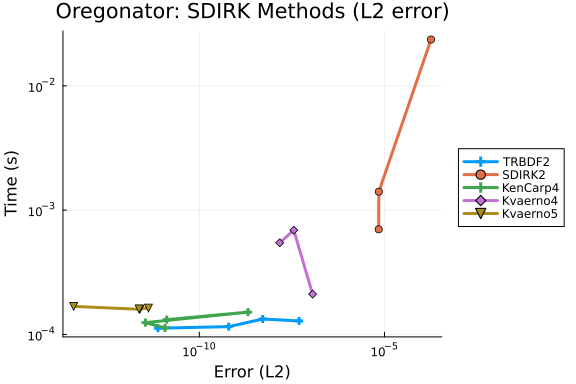

plot(wp; title = "Oregonator: SDIRK Methods (L2 error)")

wp = WorkPrecisionSet(
    prob_dde_RADAR5_oregonator, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :L∞
)

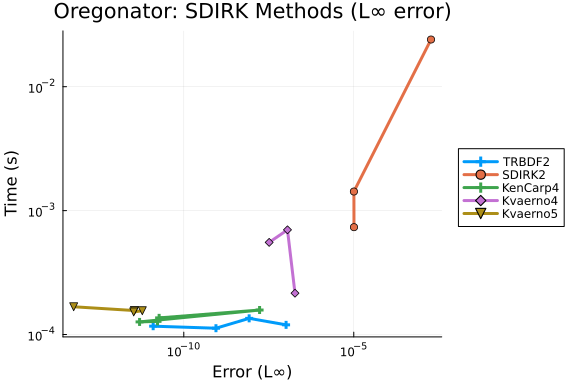

plot(wp; title = "Oregonator: SDIRK Methods (L∞ error)")

Stiff vs Non-Stiff Comparison

setups = [
    Dict(:alg => MethodOfSteps(Rosenbrock23())),
    Dict(:alg => MethodOfSteps(Rodas5P())),
    Dict(:alg => MethodOfSteps(TRBDF2())),
    Dict(:alg => MethodOfSteps(KenCarp4())),
    Dict(:alg => MethodOfSteps(Tsit5())),
    Dict(:alg => MethodOfSteps(BS3())),
    Dict(:alg => MethodOfSteps(DP5())),
]
names = ["Rosenbrock23", "Rodas5P", "TRBDF2", "KenCarp4", "Tsit5", "BS3", "DP5"]
wp = WorkPrecisionSet(
    prob_dde_RADAR5_oregonator, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e6), error_estimate = :final
)

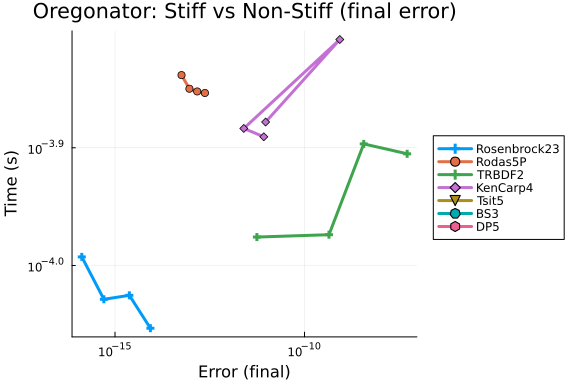

plot(wp; title = "Oregonator: Stiff vs Non-Stiff (final error)")

Low Tolerances

abstols = 1.0 ./ 10.0 .^ (8:11)
reltols = 1.0 ./ 10.0 .^ (5:8)

setups = [
    Dict(:alg => MethodOfSteps(Rosenbrock23())),
    Dict(:alg => MethodOfSteps(Rodas4())),
    Dict(:alg => MethodOfSteps(Rodas5())),
    Dict(:alg => MethodOfSteps(Rodas5P())),
    Dict(:alg => MethodOfSteps(TRBDF2())),
    Dict(:alg => MethodOfSteps(KenCarp4())),
]
names = ["Rosenbrock23", "Rodas4", "Rodas5", "Rodas5P", "TRBDF2", "KenCarp4"]
wp = WorkPrecisionSet(
    prob_dde_RADAR5_oregonator, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :final
)

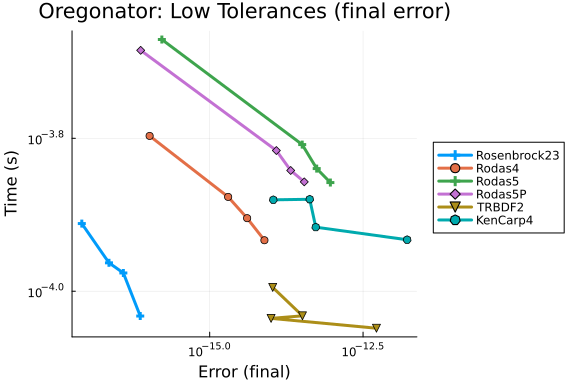

plot(wp; title = "Oregonator: Low Tolerances (final error)")

wp = WorkPrecisionSet(
    prob_dde_RADAR5_oregonator, abstols, reltols, setups;
    names = names, appxsol = test_sol, maxiters = Int(1.0e5), error_estimate = :L2
)

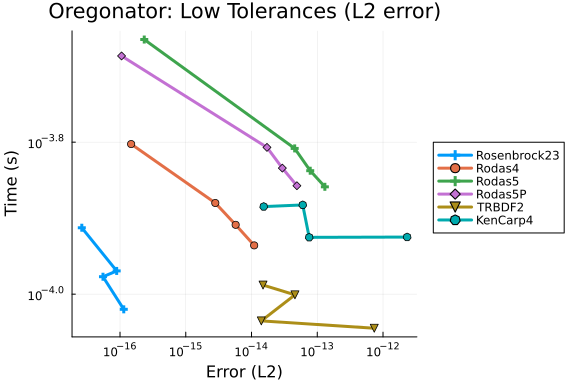

plot(wp; title = "Oregonator: Low Tolerances (L2 error)")

Appendix

These benchmarks are a part of the SciMLBenchmarks.jl repository, found at: https://github.com/SciML/SciMLBenchmarks.jl. For more information on high-performance scientific machine learning, check out the SciML Open Source Software Organization https://sciml.ai.

To locally run this benchmark, do the following commands:

using SciMLBenchmarks
SciMLBenchmarks.weave_file("benchmarks/StiffDDE","Oregonator_wpd.jmd")

Computer Information:

Julia Version 1.11.9
Commit 53a02c0720c (2026-02-06 00:27 UTC)
Build Info:
  Official https://julialang.org/ release
Platform Info:
  OS: Linux (x86_64-linux-gnu)
  CPU: 128 × AMD EPYC 7502 32-Core Processor
  WORD_SIZE: 64
  LLVM: libLLVM-16.0.6 (ORCJIT, znver2)
Threads: 128 default, 0 interactive, 64 GC (on 128 virtual cores)
Environment:
  JULIA_NUM_THREADS = auto
